Ignition Switch

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

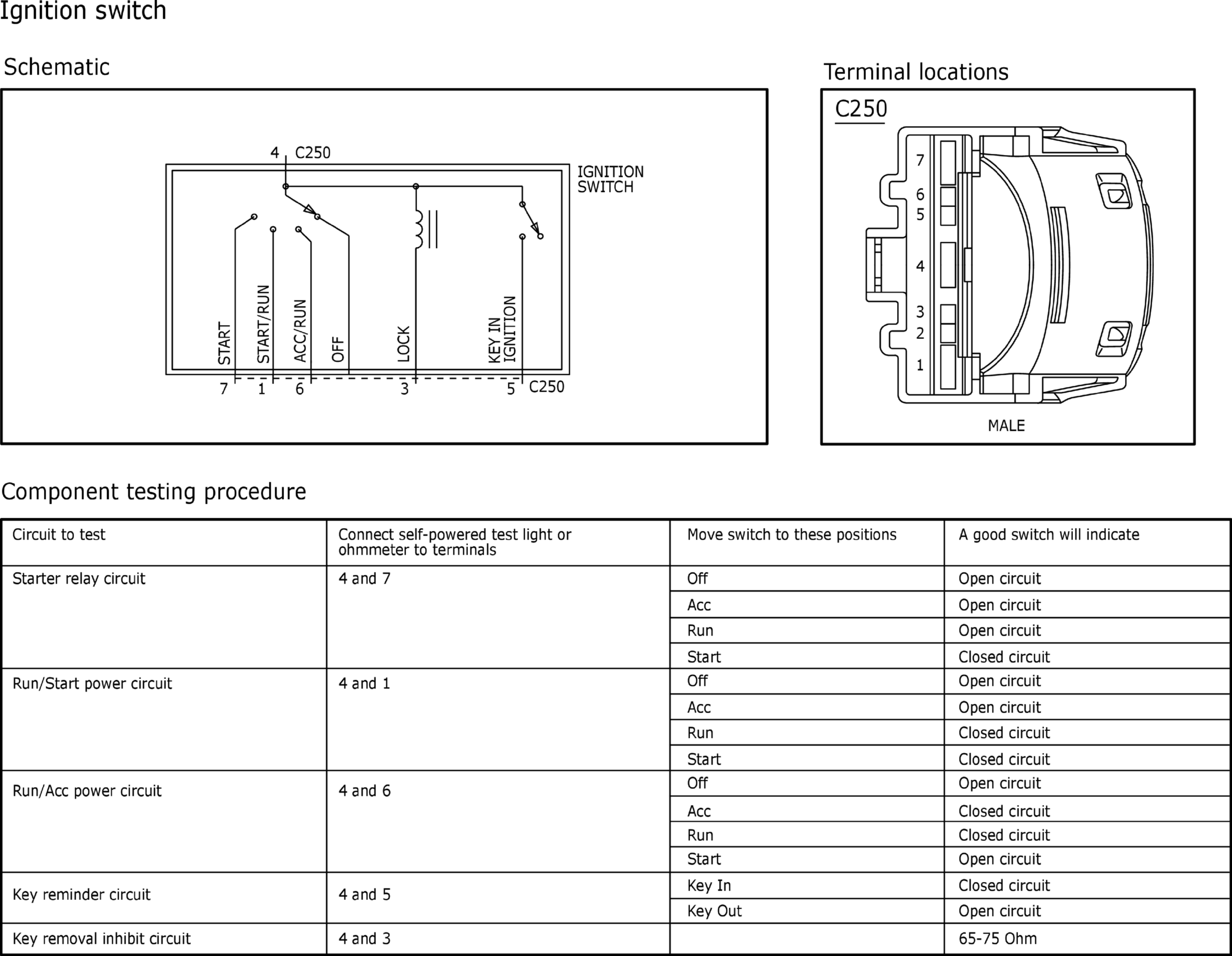

Fig 1: Ignition Switch
GFDW46642Courtesy of FORD MOTOR COMPANY
