Automatic Torque Coupling Configuration

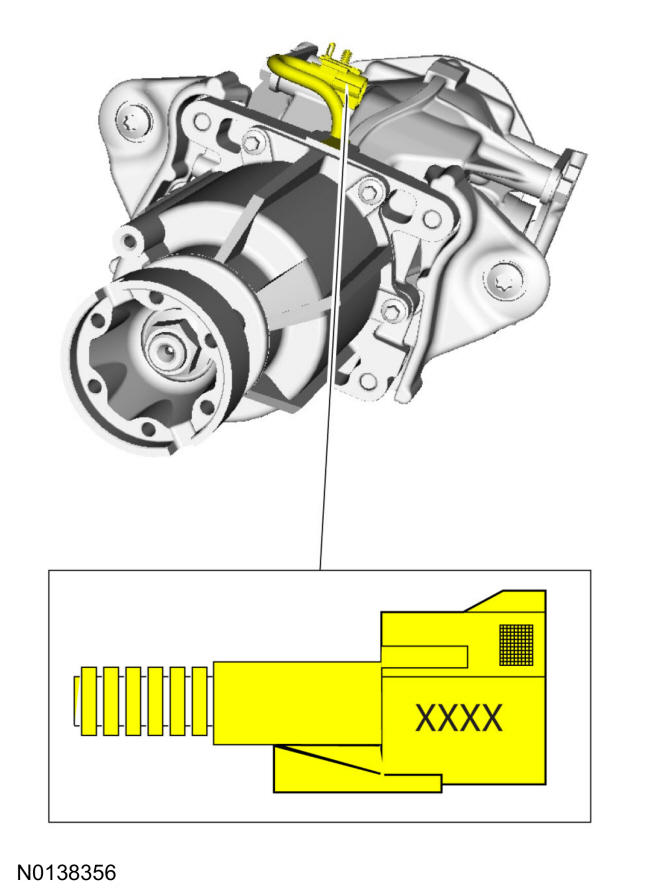

Automatic Torque Coupling Configuration Bar Code Label Location 2.3L, 3.5L/3.7L Engine

Courtesy of FORD MOTOR COMPANY

2.3L, 3.5L, 3.7L Engine

Item	Description
1	Active Torque Coupling (ATC) solenoid bar code label

Automatic Torque Coupling Configuration

NOTE: If the Active Torque Coupling (ATC) solenoid bar code information is not correct, Rear Drive Unit (RDU) damage or driveability concerns can occur.

NOTE: The 4-digit alpha numeric bar code is located on the label attached to the Rear Drive Unit (RDU).

Refer to: Active Torque Coupling Configuration .
