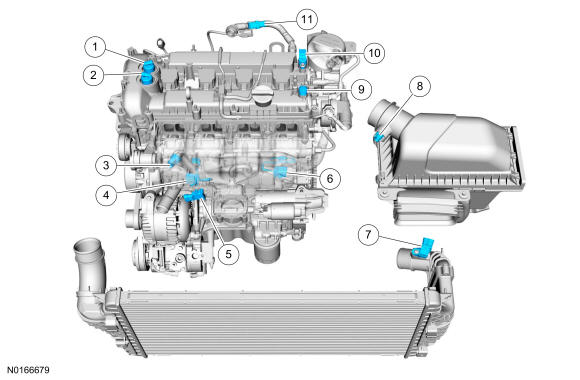

Front Engine Sensor Locations - 2.0L GTDI
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
Comments |
| 1 |
Exhaust VCT oil control solenoid |
- |
| 2 |
Intake VCT oil control solenoid |
- |
| 3 |
FRP sensor |
- |
| 4 |
Front KS sensor |
- |
| 5 |
MAP sensor |
- |
| 6 |
Rear KS sensor |
- |
| 7 |
TCBP /CACT sensor |
- |
| 8 |
IAT sensor |
- |
| 9 |
Intake CMP sensor |
- |
| 10 |
Exhaust CMP sensor |
- |
| 11 |
Crankcase pressure sensor |
- |
