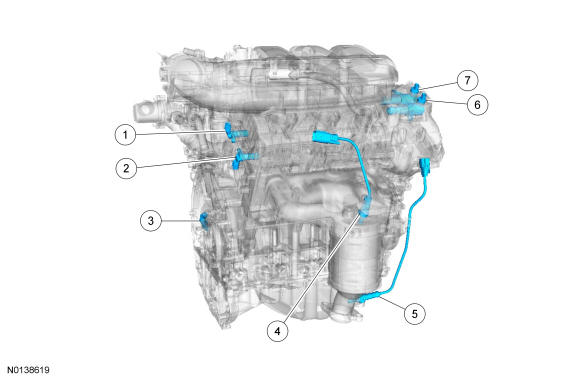

Rear Engine Sensor Locations - 3.5L Ti-VCT
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
Comments |
| 1 |
RH intake CMP sensor |
- |
| 2 |
RH exhaust CMP sensor |
- |
| 3 |
CKP sensor |
- |
| 4 |
RH HO2S |
- |
| 5 |
RH CMS |
- |
| 6 |
RH exhaust VCT oil control solenoid |
- |
| 7 |
RH intake VCT oil control solenoid |
- |
