Electronic Engine Controls - Component Location

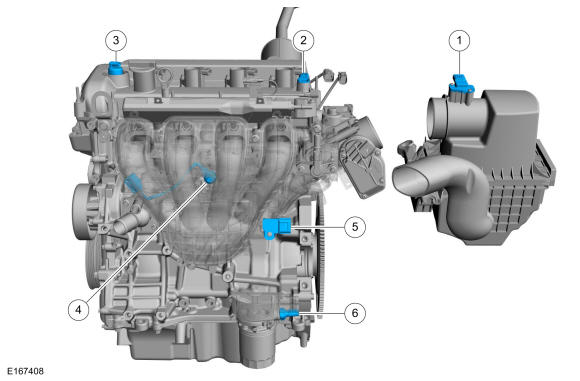

Front view of engine
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
MAF sensor |
| 2 |
CMP sensor |
| 3 |
VVT oil control solenoid |
| 4 |
KS |
| 5 |
MAP sensor |
| 6 |
Oil pressure switch |

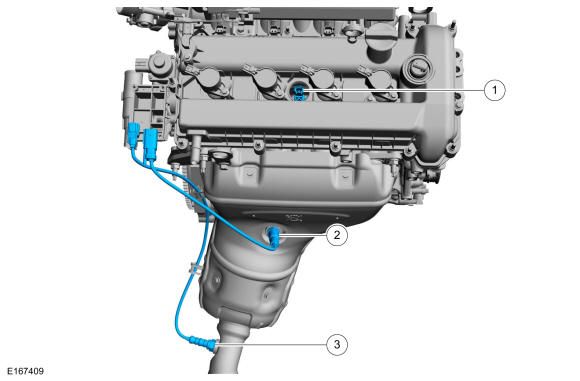

Rear view of engine
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
CHT sensor |
| 2 |
HO2S |
| 3 |
Catalyst monitor sensor |
