Selector Lever Knob: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Disengage the 4 retaining tabs and lift the selector lever bezel up and disconnect the electrical connectors.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

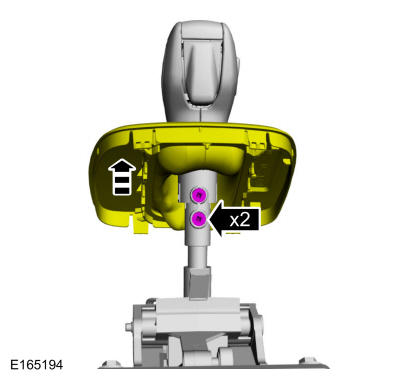

Lift the selector lever bezel up and remove the retainers.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

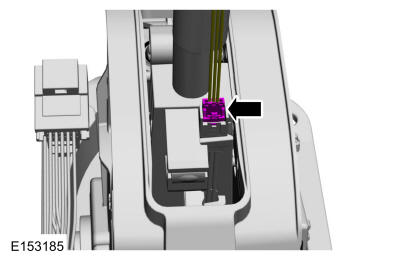

Disconnect the selectshift switch electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
- 1.

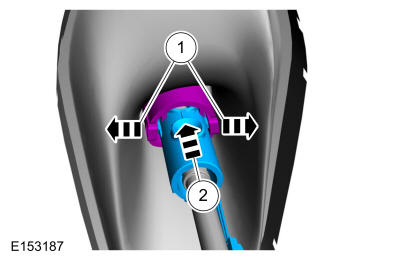

Disengage the selector lever knob from the retaining tabs.
- 2.
Separate the selector lever knob from the selector lever bezel.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

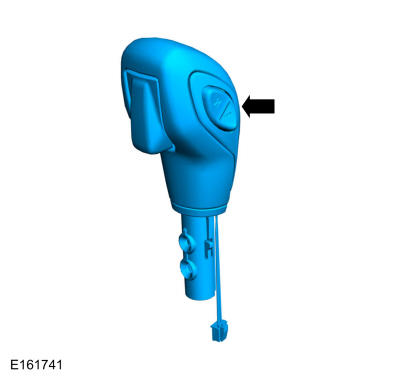

Remove the selector lever knob.
 Courtesy of FORD MOTOR COMPANY
|
