Brake Pedal Travel Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this information, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health And Safety Precautions .

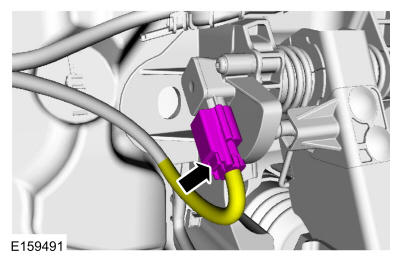

    GFD223119Courtesy of FORD MOTOR COMPANY

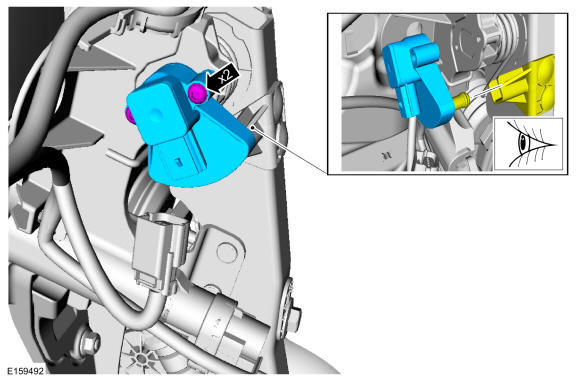

  2. Torque: 32 lb.in (3.6 Nm)
GFD223120Courtesy of FORD MOTOR COMPANY
