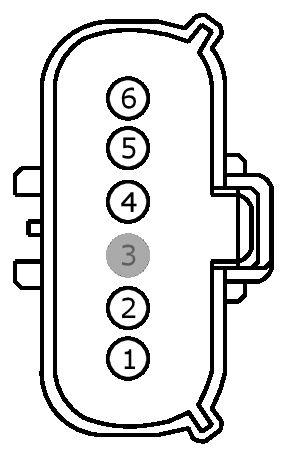

Connector End View (C1717) - TRANSMISSION FLUID PUMP
Connector:C1717
Description
TRANSMISSION FLUID PUMP
Color
BK
Harness
14290
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBB17 (BN-GN) | 14 | FUSE - 17 OR CIRCUIT BREAKER | |
| 2 | CE341 (VT-GY) | 20 | CTRL MOD. - POWERTRAIN # IGNITION SWITCH POSITION RUN (ISP-R) | |
| 3 | * | * | Not Used | |
| 4 | VYT11 (VT-GN) | 20 | CTRL MOD. - TRANSMISSION AUXILIARY PUMP PWM CONTROL (TAPR_CT) | |
| 5 | VYT12 (YE-GN) | 20 | PUMP - TRANSMISSION AUXILIARY # DIAGNOSTIC (TAPR_DI) | |
| 6 | GD130 (BK-YE) | 14 | GROUND - HEADLAMP PANEL/GOR LEFT # 2ND POINT |

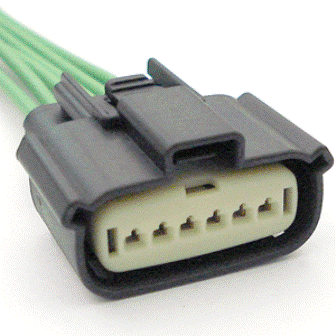

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-944 |
Service Part Number: 9U2Z-14S411-NA Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses Connector - Inline |
