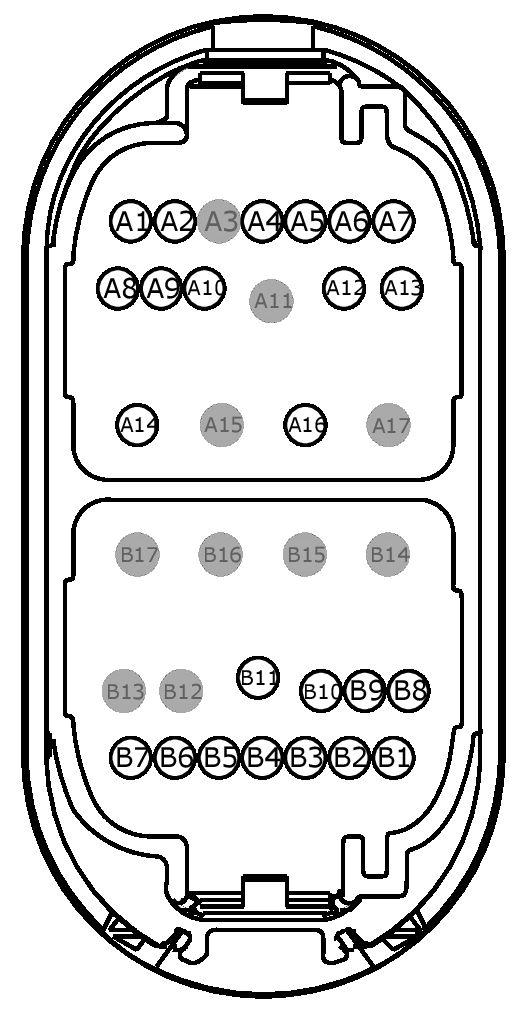

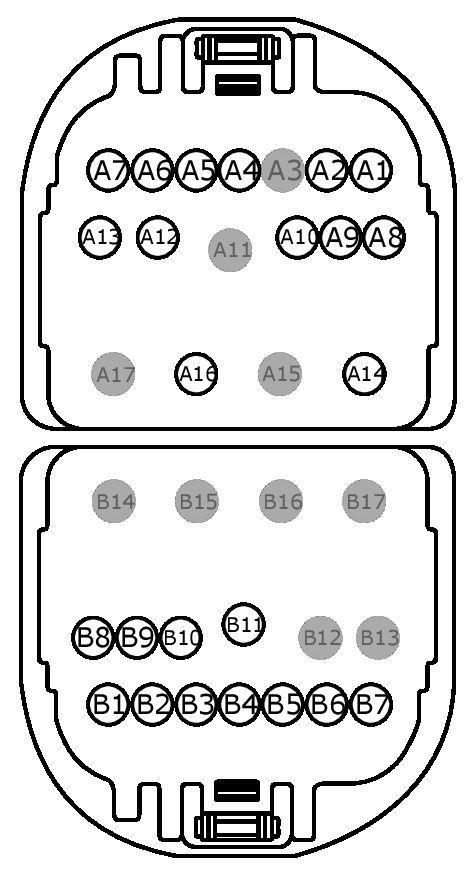

Connector End View (C340) - INLINE
InlineC340
Description
INLINE
Color
LT GY
Base Part #
Service Pigtail
Not Available
MALE
Harness 14630
FEMALE
Harness 14A005
| Pin | Circuit | Gauge | Qualifier |
| A1 | CPK20 (BN-GN) | 22 | 14A005 |
| A1 | CPK20 (BN-GN) | 22 | 14630 |
| A2 | CPL78 (VT-WH) | 22 | 14A005 |
| A2 | CPL78 (VT-WH) | 22 | 14630 |
| A3 | * | * | |
| A4 | CPK16 (GY-BN) | 22 | 14A005 |
| A4 | CPK16 (GY-BN) | 22 | 14630 |
| A5 | GD140 (BK) | 22 | 14A005 |
| A5 | GD140 (BK-GN) | 22 | 14630 |
| A6 | CPK11 (VT-GY) | 22 | 14630 |
| A6 | RPK04 (VT-GY) | 22 | 14A005 |
| A7 | CPK24 (BU-GY) | 22 | |
| A8 | CPK11 (BU-OG) | 22 | 14630 |
| A8 | VPK04 (BU-OG) | 22 | 14A005 |
| A9 | VH407 (YE-GN) | 22 | |
| A10 | RH107 (BK-YE) | 22 | |
| A11 | * | * | |
| A12 | VDB06 (BK) | 20 | 14630 |
| A12 | VDB06 (GY-OG) | 22 | 14A005 |
| A13 | VDB07 (BK) | 20 | 14630 |
| A13 | VDB07 (VT-OG) | 22 | 14A005 |
| A14 | SBR02 (BK) | 12 | 14630 |
| A14 | SBR02 (YE-RD) | 12 | 14A005 |
| A15 | * | * | |
| A16 | VPW33 (BK) | 20 | 14630 |
| A16 | VPW33 (VT-BN) | 22 | 14A005 |
| A17 | * | * | |
| B1 | CPL31 (BK) | 20 | 14630 |
| B1 | CPL31 (WH) | 22 | 14A005 |
| B2 | CPL88 (VT) | 20 | 14630 |
| B2 | CPL88 (VT) | 22 | 14A005 |
| B3 | CPL15 (BU-GY) | 20 | 14630 |
| B3 | CPL42 (GY-YE) | 22 | 14A005 |
| B4 | RME10 (BK) | 18 | 14630 |
| B4 | RME10 (WH-OG) | 18 | 14A005 |
| B5 | VME10 (BK) | 18 | 14630 |
| B5 | VME10 (WH-VT) | 18 | 14A005 |
| B6 | CR152 (GY-YE) | 20 | |
| B7 | RR152 (YE-VT) | 20 | |
| B8 | CPL43 (VT-GY) | 20 | 14630 |
| B8 | CPL43 (VT-GY) | 22 | 14A005 |
| B9 | CLN17 (BU-WH) | 20 | |
| B10 | CBP17 (BN-GN) | 20 | 14630 |
| B10 | CBP17 (BN-GN) | 20 | 14A005 |
| B11 | GD140 (BK-GN) | 12 | 14A005 |
| B11 | GD140 (BK-VT) | 12 | 14630 |
| B12 | * | * | |
| B13 | * | * | |
| B14 | * | * | |
| B15 | * | * | |
| B16 | * | * | |
| B17 | * | * |
