Connector End View (C4002) - INLINE
InlineC4002
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 10b694
FEMALE
Harness 14B322
| Pin | Circuit | Gauge | Qualifier |
| 1 | CYB03 (BN-YE) | 20 | |
| 2 | CYB04 (VT-BN) | 20 |
| Available Pigtail Kits | |

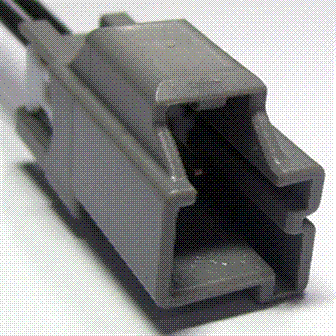

| Pigtail Kit Part Number WPT-1078 |
Service Part Number: 3U2Z-14S411-LAB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses: Connector - Inline Element - Heated Seat Lamp - PRNDL Indicator Speaker - Front Switch - Seat Lumbar |

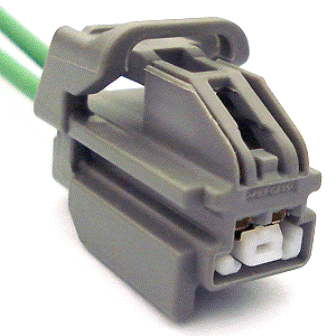

| Pigtail Kit Part Number WPT-965 |
Service Part Number: 3U2Z-14S411-AEB Gauge: 14 Pin material: Silver Cavities: 2 Vehicle Uses: Actuator - Door Lock - Decklid/Liftgate Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Module - Heated Seat Motor - Adjustable Pedal Motor - Decklid / Liftgate Sensor - Air Charge Temperature Sensor - EATC In Car Temperature Speaker - Subwoofer Switch - Adjustable Pedal Switch - Brake Deactivation Switch - Brake Pressure Switch - Clutch Pedal Position Switch - Stop Lamp Switch - Third Row Power Folding Seat |
