Climate Control System - General Information
>>
Description And Operation
>>
Climate Control System - Vehicles With: Dual Automatic Temperature Control (DATC) - System Operation and Component Description
>>
System Operation
>>

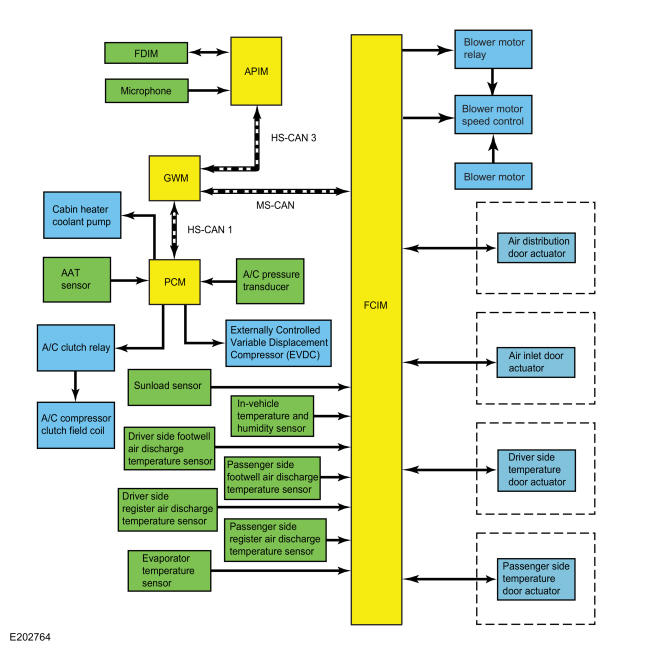

System Diagram
