System Operation
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

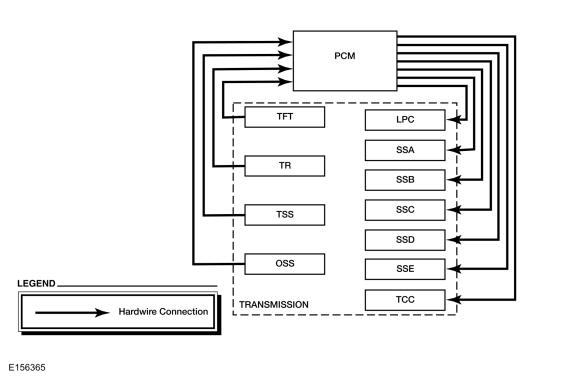

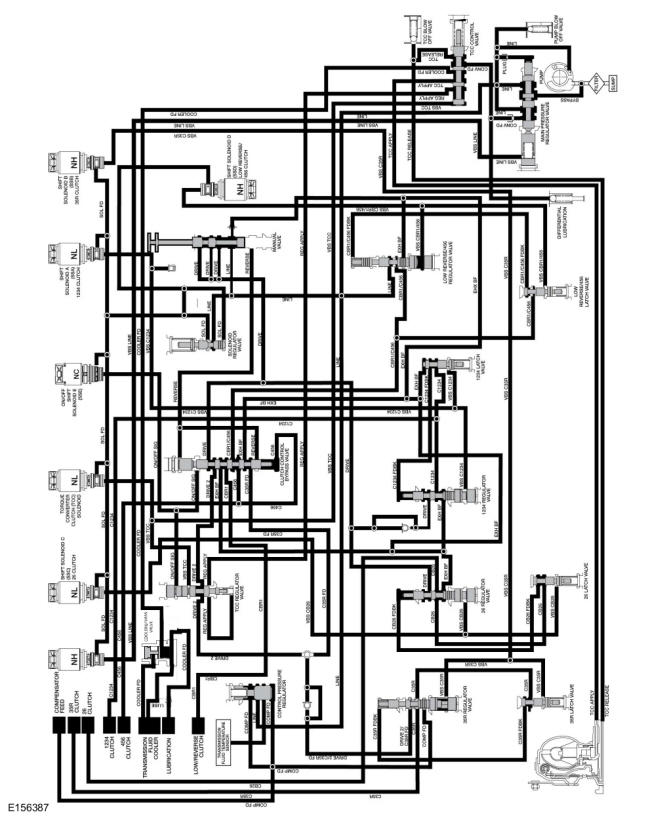

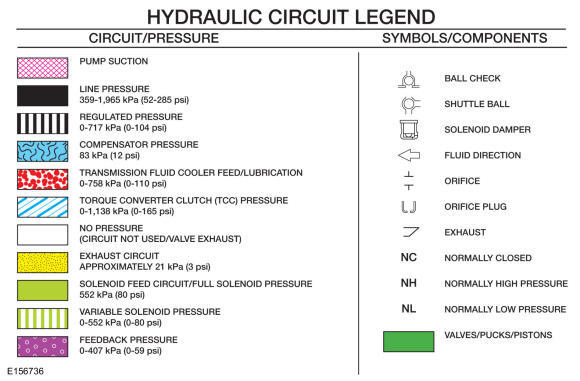

System Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
