Front Seat Track Motor: Removal

NOTE: Driver seat shown, passenger seat similar.

  1. 1.

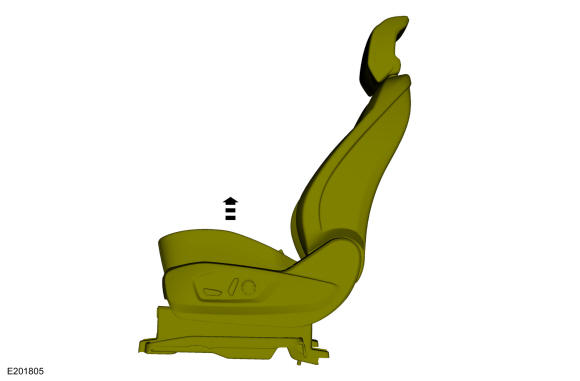

    NOTE: Positioning the seat fully upward provides access to service the seat track motor with the seat in the vehicle.

    Move the front seat to the full upward position.

GFD17882Courtesy of FORD MOTOR COMPANY

  1. 2.

    Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

  1. 3.

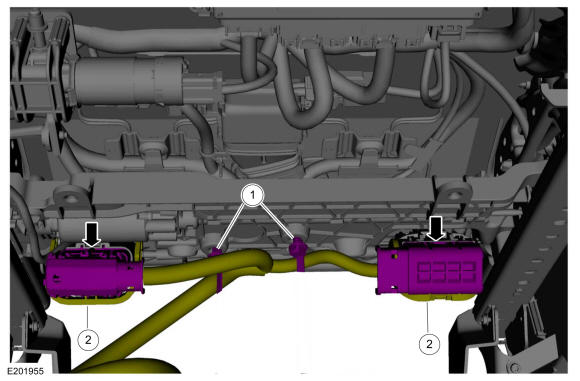

    Disconnect the seat harness electrical connector(s).

    1. 1.

      Detach the wire harness pin-type retainer(s).

    1. 2.

      Release the locking tab(s) and rotate the position assurance lever(s).
GFD17809Courtesy of FORD MOTOR COMPANY

  1. 4.

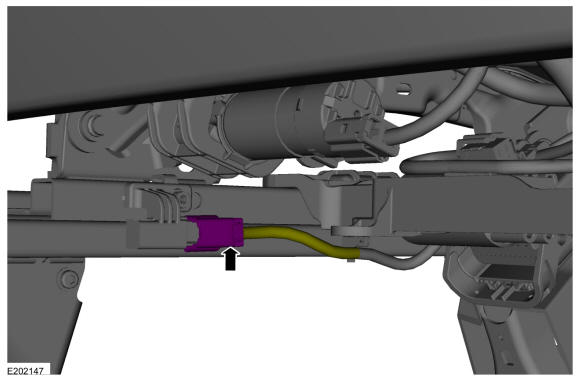

    Disconnect seat position sensor electrical connector.
GFD17883Courtesy of FORD MOTOR COMPANY

  1. 5.

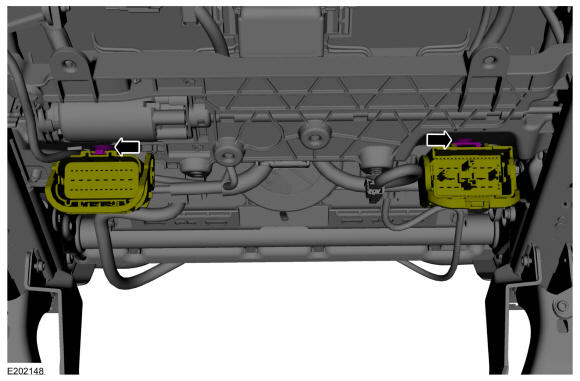

    Detach the seat track wire harness connector retainer(s) from the seat track motor.
GFD17884Courtesy of FORD MOTOR COMPANY

  1. 6.

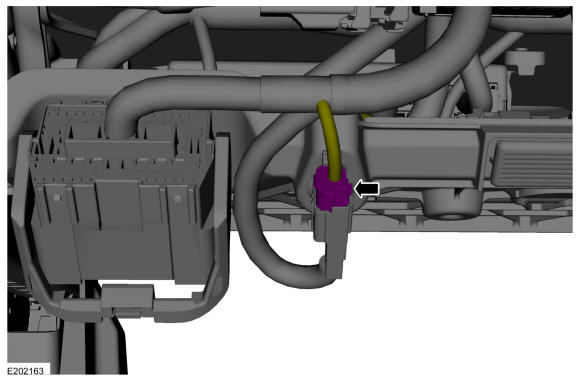

    If equipped. Disconnect ambient lamp electrical connector.
GFD17885Courtesy of FORD MOTOR COMPANY

  1. 7.

    NOTE: Seat components are removed for clarity.

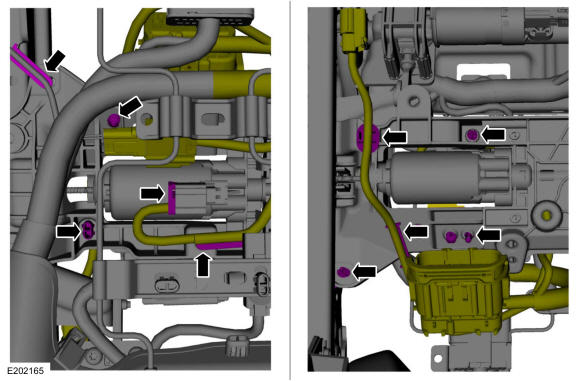

    Disconnect the seat track motor electrical connector, detach the wire harness retainers and position the wire harness aside.

GFD17886Courtesy of FORD MOTOR COMPANY

  1. 8.

    NOTE: Seat components and wiring harnesses are removed for clarity.

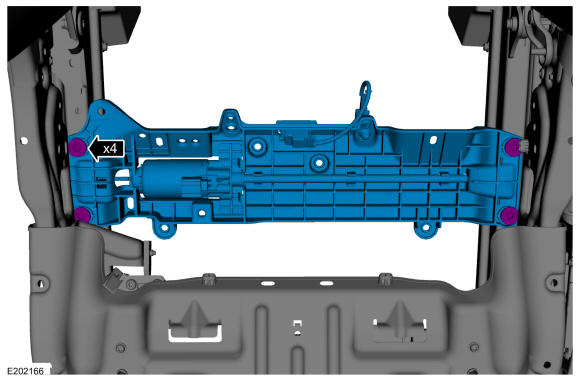

    Remove the bolts and the seat track motor.

GFD17887Courtesy of FORD MOTOR COMPANY

  1. 9.

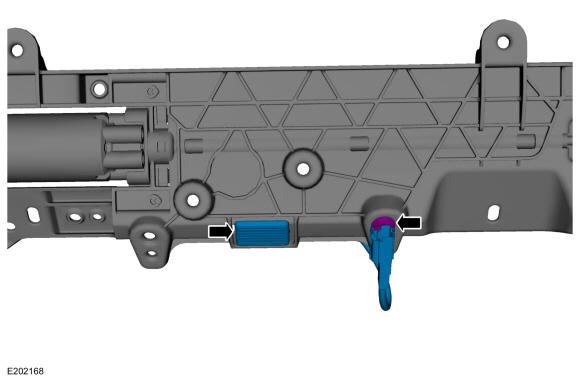

    If equipped. Detach the pin-type retainer and remove the ambient lamp.
GFD17888Courtesy of FORD MOTOR COMPANY
