Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) - System Operation and Component Description
>>
System Operation
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

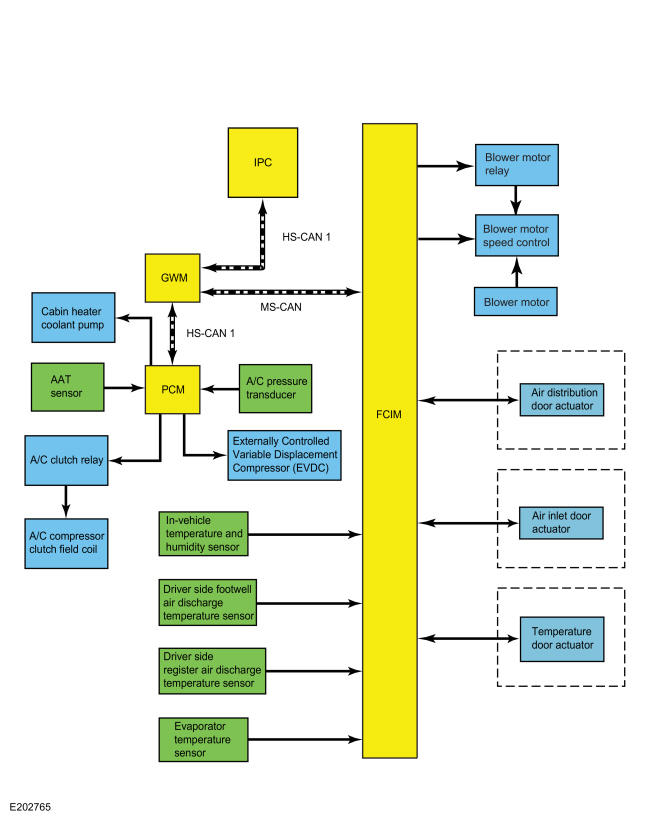

System Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
