Ignition Coil-On-Plug: Installation

Both sides

• 1.

  Inspect the ignition coil-on-plug assembly for cracks, rips or tears. Replace any damaged coil-on-plug assembly's.

Courtesy of FORD MOTOR COMPANY

Right side

• 2.

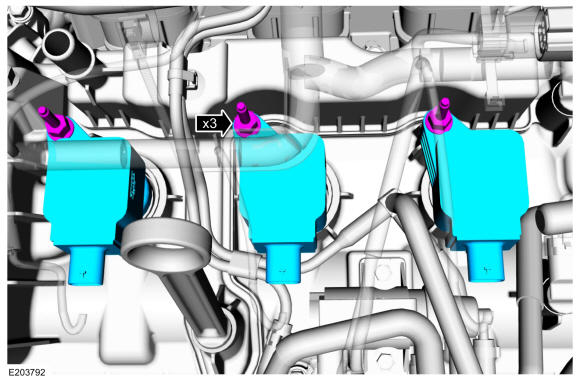

  Install the ignition coil-on-plugs, then install and tighten the ignition coil-on-plug studbolts.

  Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

• 3.

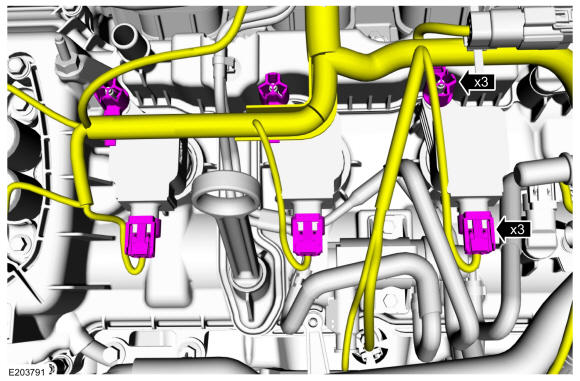

  Connect the ignition coil-on-plug electrical connectors.

Courtesy of FORD MOTOR COMPANY

• 4.

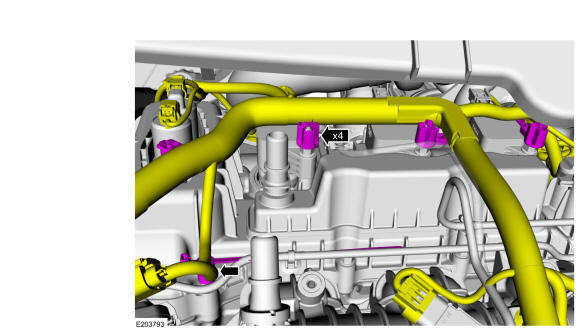

  Attach the wire harness retainers to the studbolts.

Courtesy of FORD MOTOR COMPANY

• 5.

  Install the air cleaner outlet pipe RH. Refer to: Air Cleaner Outlet Pipe RH

• 6.

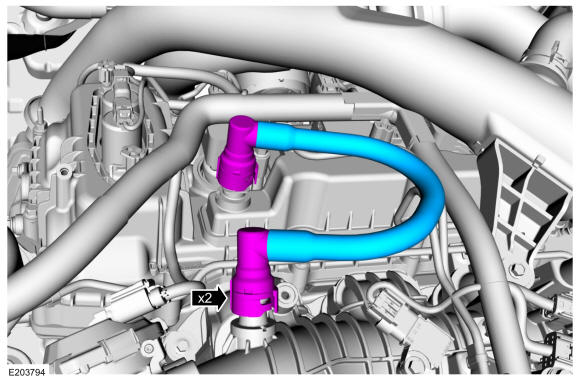

  Install the crankcase ventilation hose and then connect the quick release couplings. Refer to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY

Left side

• 7.

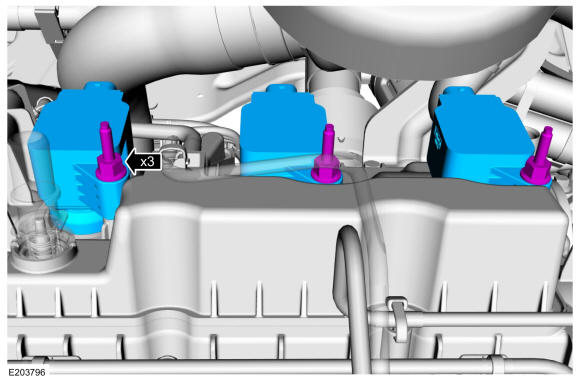

  Install the ignition coil-on-plugs, then install and tighten the ignition coil-on-plug studbolts.

  Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

• 8.

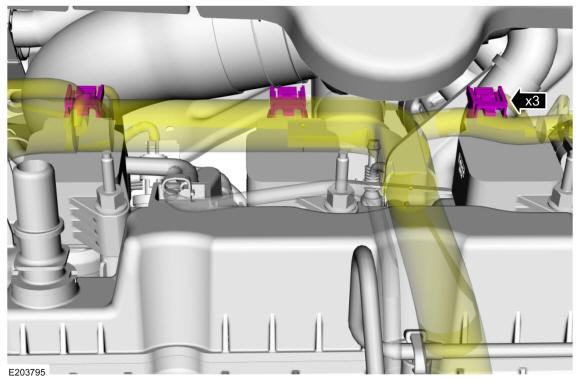

  Connect the ignition coil-on-plug electrical connectors. Attach the electrical harness retainers to the ignition coil-on-plug studbolts.

Courtesy of FORD MOTOR COMPANY

• 9.

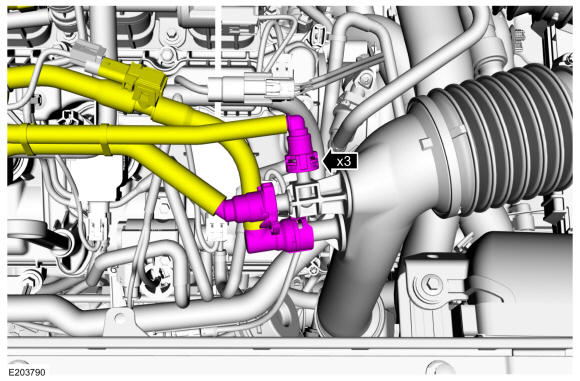

  Connect the quick release couplings. Refer to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY

Both sides

• 10.

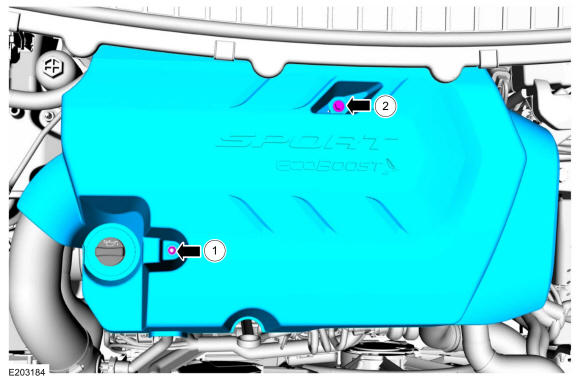

  Install the engine appearance cover, then install and tighten the engine appearance cover retainers.

  Torque:

  1: 42 lb.in (4.8 Nm)

  2: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
