Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6F50/6F55

Adjustment

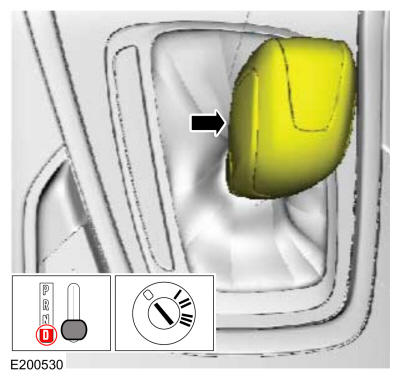

1. 1.

   Position the selector lever in D. Turn the ignition off.

Courtesy of FORD MOTOR COMPANY

1. 2.

   Remove the air cleaner. REFER to: AIR CLEANER - 2.7L EcoBoost (238kW/324PS). REFER to: AIR CLEANER - 3.5L Duratec (212kW/278PS).

1. 3.

   Disconnect the selector lever cable from the manual lever.

Courtesy of FORD MOTOR COMPANY

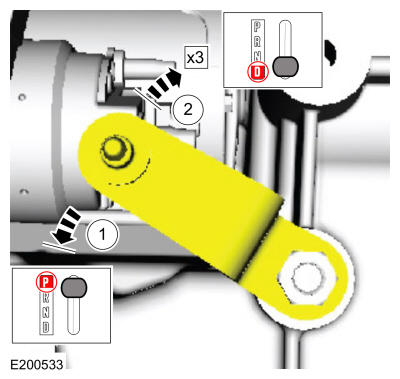

1. 4.

   Position the manual lever in D.

   1. 1.

      Rotate the manual lever counterclockwise until it stops.

   1. 2.

      Rotate the manual lever 3 detents into D.

Courtesy of FORD MOTOR COMPANY

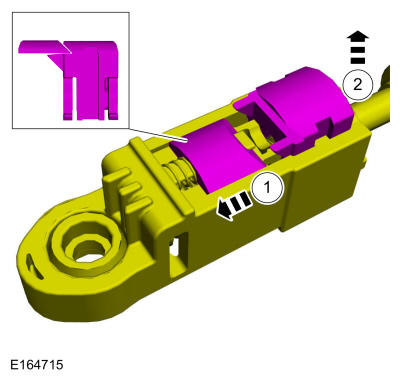

1. 5.

   Unlock the adjuster.

   1. 1.

      Slide the spring-loaded tab forward.

   1. 2.

      Lift up the adjuster lock.

Courtesy of FORD MOTOR COMPANY

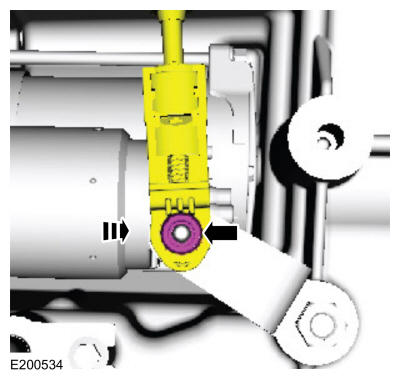

1. 6.

   Connect the selector lever cable to the manual lever.

Courtesy of FORD MOTOR COMPANY

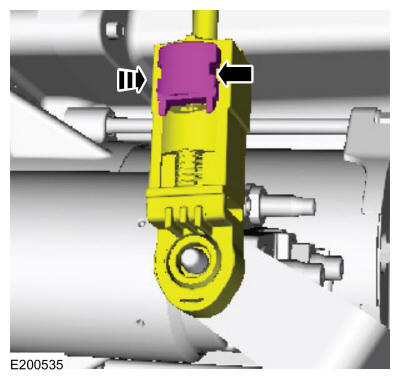

1. 7.

   Push the adjuster lock into place.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Install the air cleaner. REFER to: AIR CLEANER - 2.7L EcoBoost (238kW/324PS). REFER to: AIR CLEANER - 3.5L Duratec (212kW/278PS).

1. 9.

   Verify the engine starts only in P and N and the reverse lamps illuminate only in R.
