Steering Gear Boot: Removal

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the tie-rod end. Refer to: Tie Rod End .
NOTE: Count and record the number of turns required to remove the outer tie-rod end jamb nut for reference during installation.

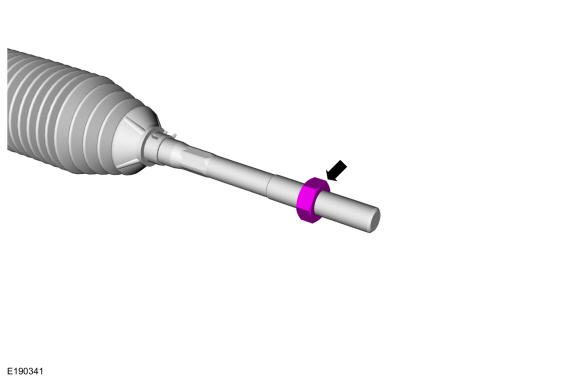

Remove the tie-rod end jamb nut.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Remove the 4 underbody shield bolts and remove the underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Remove the 2 underbody shield bolts and remove the underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

NOTE: 4WD shown, RWD similar.

Remove the underbody shield bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY

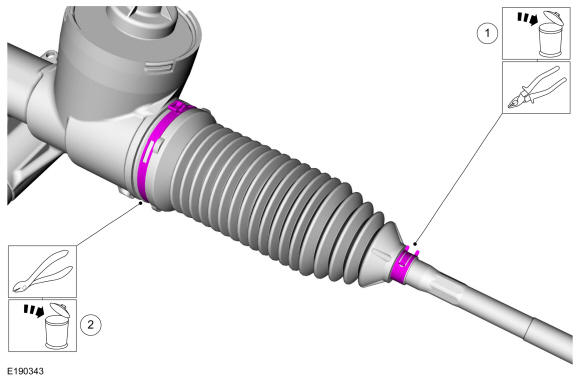

1. Remove and discard the outer steering gear boot clamp.
2. Remove and discard the inner steering gear boot clamp.
Courtesy of FORD MOTOR COMPANY

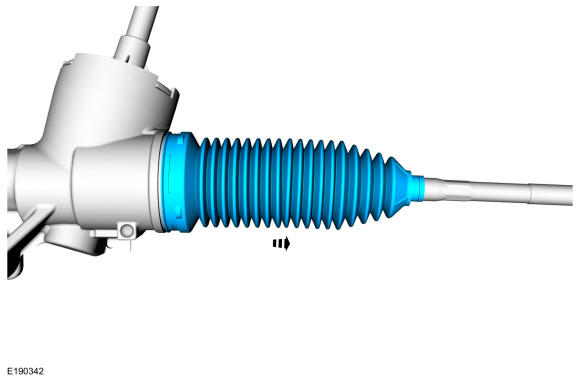

Remove the steering gear boot.
