Instrument Panel - Exploded View
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

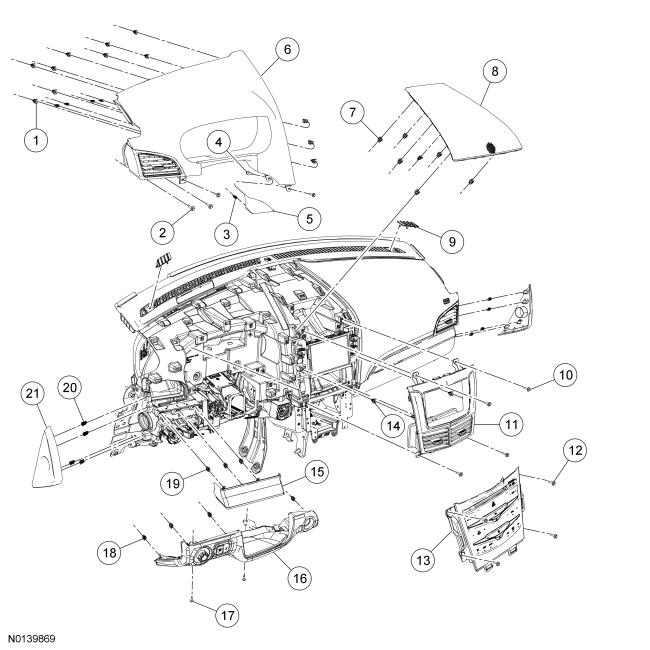

Instrument Panel Finish Panels and Fasteners (1 of 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | W705289 | Upper LH instrument panel retaining clip (16 required) |
| 2 | W707628 | Upper LH instrument panel trim panel screw (4 required) |
| 3 | W705289 | Upper LH instrument panel trim panel retaining clip |
| 4 | W707628 | Upper LH instrument panel trim panel screw |
| 5 | 042A82 | Upper LH instrument panel section trim panel |
| 6 | 044D70 | Upper LH instrument panel |
| 7 | - | Instrument panel top speaker cover retaining clip (part of 18978) (7 required) |
| 8 | 18978 | Instrument panel top speaker cover |
| 9 | 045G22 | Instrument panel upper bolt cover |
| 10 | W707628 | Center instrument panel finish panel screw (4 required) |
| 11 | 04302 | Center instrument panel finish panel |
| 12 | W707628 | Front Controls Interface Module(FCIM) bolt |
| 13 | 18842 | Front Controls Interface Module(FCIM) |
| 14 | - | Center instrument panel finish panel retaining clip (part of 4302) (2 required) |
| 15 | 04388 | LH instrument panel finish panel |
| 16 | 04459 | Steering column opening trim panel |
| 17 | N808453 | Steering column opening trim panel screw (2 required) |
| 18 | W790178 | Steering column opening trim panel retaining clip (5 required) |
| 19 | - | LH instrument panel finish panel retaining clip (part of 04388) (3 required) |
| 20 | - | Instrument panel side finish panel retaining clip (part of 04480) (4 required) |
| 21 | 04480 | Instrument panel side finish panel |

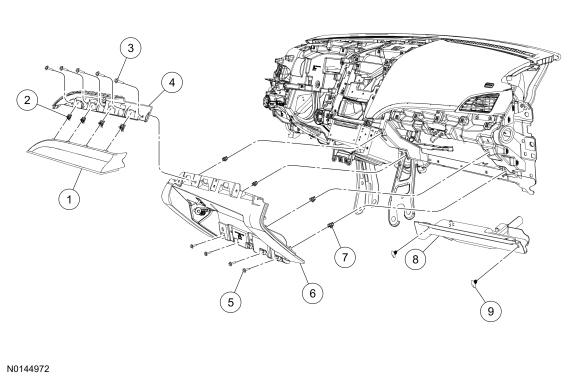

Instrument Panel Finish Panels and Fasteners (2 of 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | 04388 | RH instrument panel trim panel |
| 2 | - | RH instrument panel trim panel retaining clip (part of 04388) (4 required) |
| 3 | W707628 | RH instrument panel trim panel retaining plate screw (5 required) |
| 4 | 044A59 | RH instrument panel trim panel retaining plate |
| 5 | W707628 | Glove compartment opening trim cover screw (4 required) |
| 6 | 04338 | Glove compartment opening trim cover |
| 7 | - | Glove compartment opening trim cover retaining clip (part of 04338) (4 required) |
| 8 | 046A24 | RH lower instrument panel |
| 9 | - | RH lower instrument panel insulator push pin (2 required) |

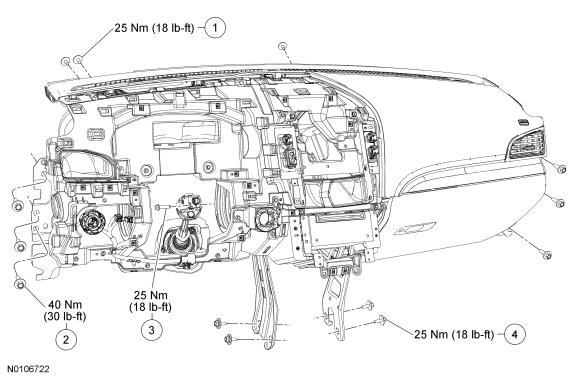

Instrument Panel Bolts
| Item | Part Number | Description |
|---|---|---|
| 1 | W709178 | Instrument panel upper cowl bolt (3 required) |
| 2 | W710259 | Instrument panel side bolt (6 required) |
| 3 | W712961 | Steering column shaft-to-steering column bolt |
| 4 | W709268 | Instrument panel center support bolt (4 required) |

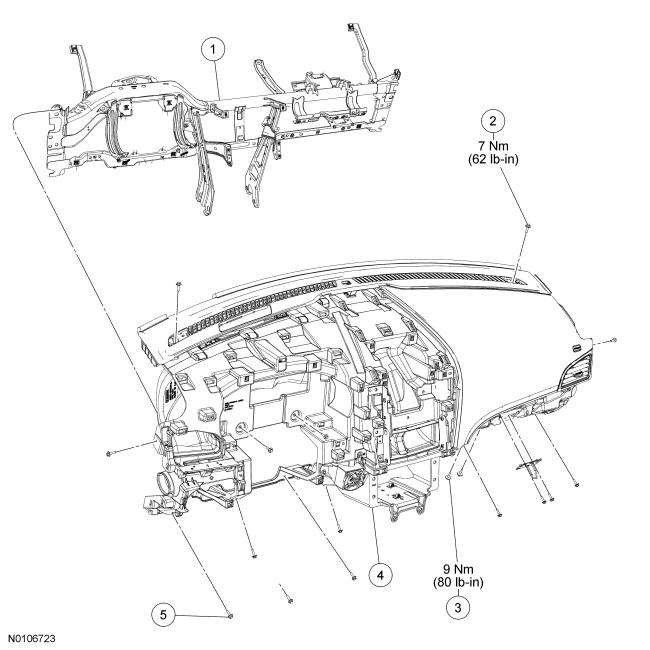

Instrument Panel Fasteners
| Item | Part Number | Description |
|---|---|---|
| 1 | 045045 | In-vehicle crossbeam |
| 2 | N807316 | Instrument panel upper bolt (2 required) |
| 3 | W706281 | Passenger side air bag-to-crossbeam bolt (2 required) |
| 4 | 04320 | Instrument panel upper section |
| 5 | W707628 | Instrument panel screw (13 required) |

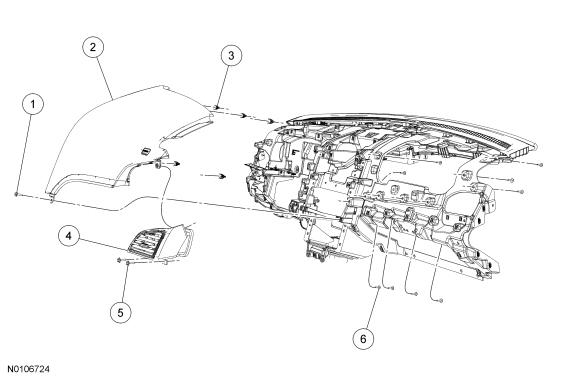

Instrument Panel Upper Section
| Item | Part Number | Description |
|---|---|---|
| 1 | W707628 | Upper RH instrument panel front screw |
| 2 | 044F58 | Upper RH instrument panel |
| 3 | W705289 | Upper RH instrument panel retaining clip (5 required) |
| 4 | 19893 | Passenger side register |
| 5 | W707628 | Passenger side register screw (2 required) |
| 6 | W706473 | Upper RH instrument panel rear screw (9 required) |

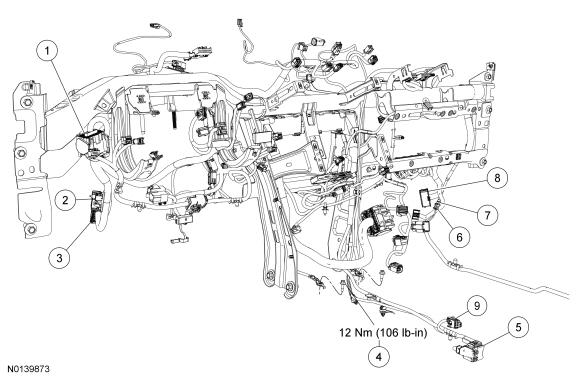

Instrument Panel Electrical Connectors
| Item | Part Number | Description |
|---|---|---|
| 1 | 14401 | LH instrument panel bulkhead electrical connector |
| 2 | 14401 | Smart Junction Box(SJB) lower electrical connector |
| 3 | 14401 | Lower bulkhead electrical connector |
| 4 | W706281 | Ground wire bolt |
| 5 | 14401 | Restraints Control Module(RCM) electrical connector |
| 6 | 14401 | Satellite radio antenna connector |
| 7 | 14401 | Antenna cable |
| 8 | 14401 | RH bulkhead electrical connector |
| 9 | 14D202 | Universal Serial Bus (USB) cable |
