Upshift Paddle Switch: Removal

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the driver air bag. Refer to: Driver Airbag .

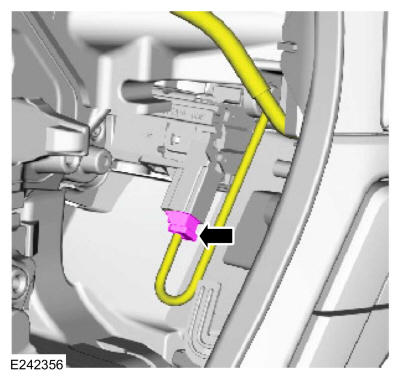

  2. Disconnect the upshift paddle switch electrical connector.
    GFD177860Courtesy of FORD MOTOR COMPANY

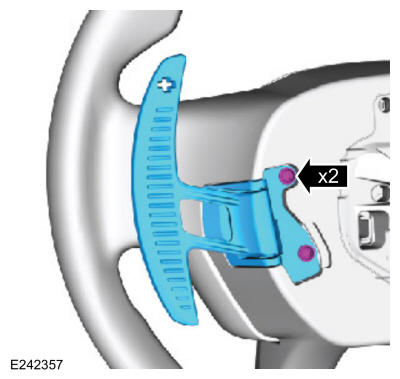

  3. Remove the screws and the upshift paddle switch.
GFD177861Courtesy of FORD MOTOR COMPANY
