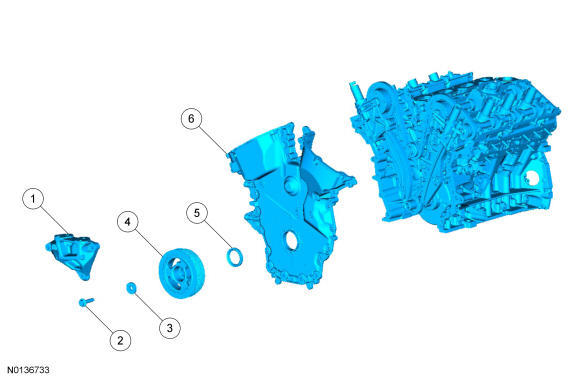

Exploded View Of Engine Front

GFD82709Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 6A0003 Engine mount bracket
2 W701512 Crankshaft pulley bolt
3 N806165 Crankshaft pulley washer
4 6316 Crankshaft pulley
5 6700 Crankshaft front seal
6 6C086 Engine front cover
