Power Steering Controls

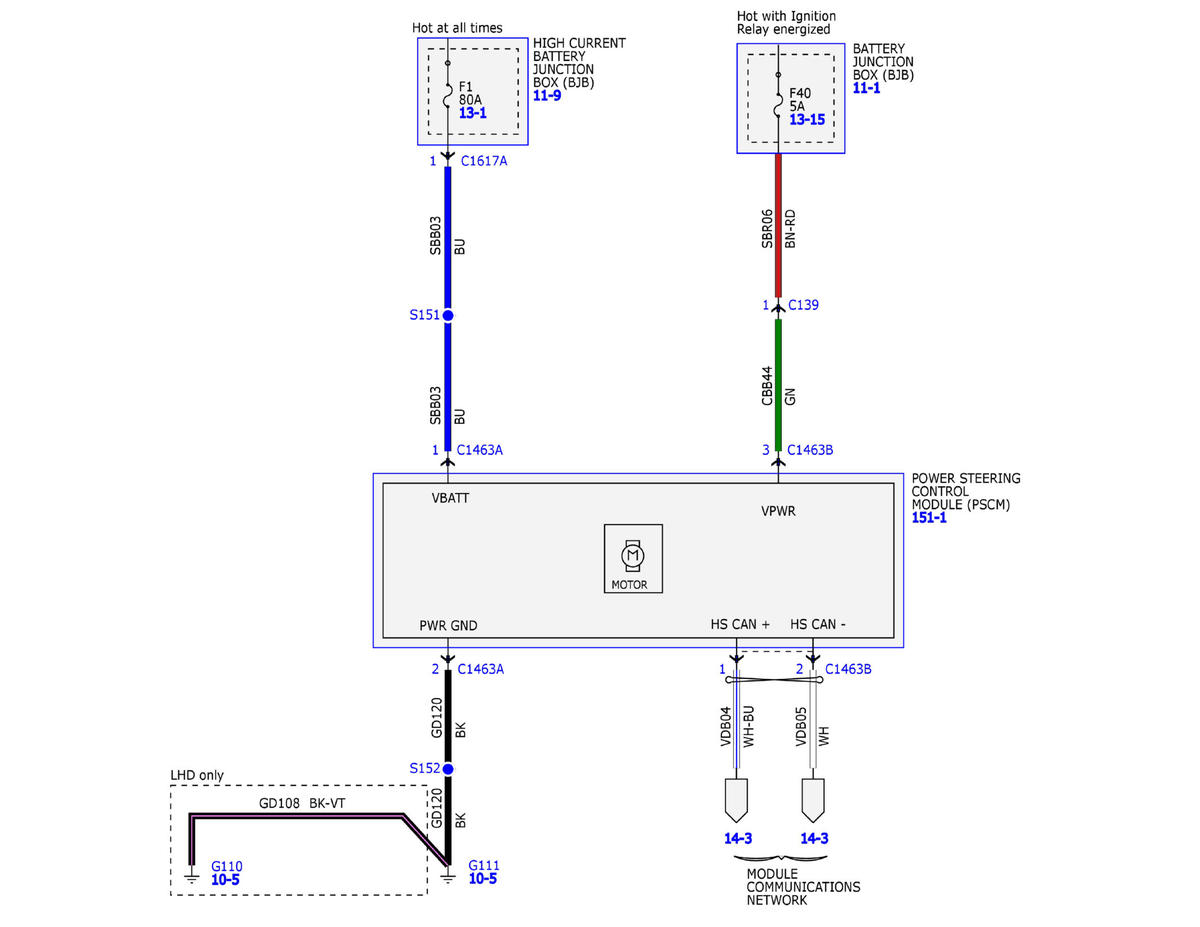

Fig 1: Power Steering Controls Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
