Component Location

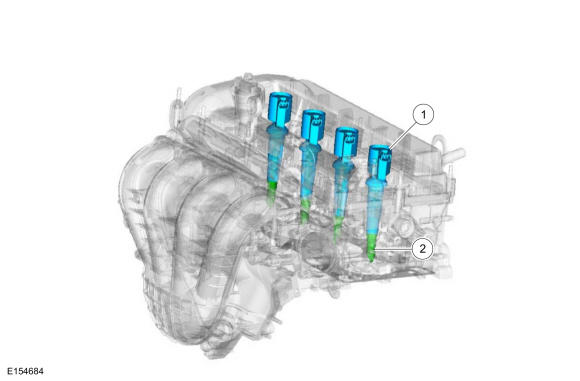

Component Location - 2.5L Duratec

GFD214851Courtesy of FORD MOTOR COMPANY
Item Description
1 Ignition coil-on-plug(s)
2 Spark plug(s)
