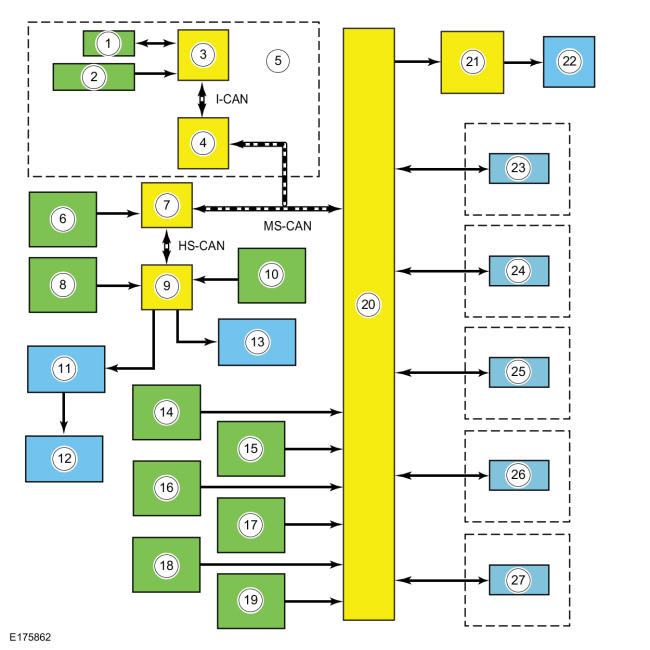

System Diagram
WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | FDIM |
| 2 | Microphone |
| 3 | APIM |
| 4 | IPC |
| 5 | SYNC ® system |
| 6 | Evaporator temperature sensor |
| 7 | BCM |
| 8 | Ambient air temperature sensor |
| 9 | PCM |
| 10 | A/C pressure transducer |
| 11 | A/C clutch relay |
| 12 | A/C compressor clutch field coil |
| 13 | Externally Controlled Variable Displacement Compressor (EVDC) |
| 14 | Autolamp-sunload sensor |
| 15 | In-vehicle temperature and humidity sensor |
| 16 | Driver side footwell air discharge temperature sensor |
| 17 | Passenger side footwell air discharge temperature sensor |
| 18 | Driver side center register air temperature sensor |
| 19 | Passenger side center register air temperature sensor |
| 20 | HVAC control module |
| 21 | Blower motor control module |
| 22 | Blower motor |
| 23 | Air inlet door actuator |
| 24 | Defrost vent/register door actuator |
