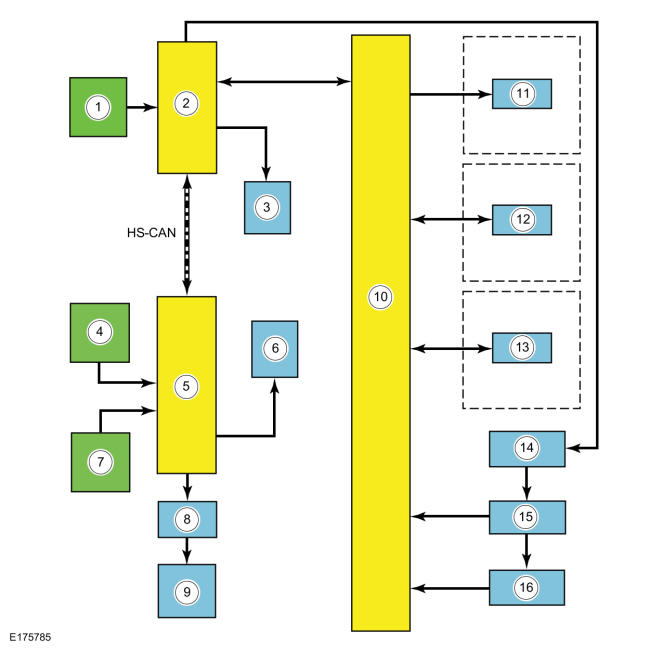

System Diagram
WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Evaporator temperature sensor |
| 2 | BCM |
| 3 | Electric booster heater |
| 4 | A/C pressure transducer |
| 5 | PCM |
| 6 | Externally Controlled Variable Displacement Compressor (EVDC) |
| 7 | Ambient Air Temperature (AAT) Sensor |
| 8 | A/C clutch relay |
| 9 | A/C compressor clutch field coil |
| 10 | HVAC control module |
| 11 | Air inlet door actuator |
| 12 | Air distribution door actuator |
| 13 | Temperature door actuator |
| 14 | Blower motor relay |
| 15 | Blower motor |
| 16 | Blower motor resistor |
