System Diagram

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

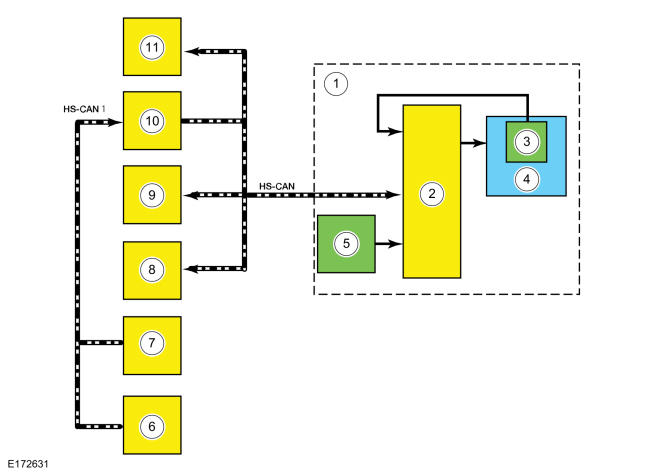

GFD148384Courtesy of FORD MOTOR COMPANY
Item Description
1 EPAS gear
2 PSCM
3 Position sensor
4 Motor
5 Torque sensor
6 PCM
7 ABS
8 BCM
9 SASM
10 GWM
11 PAM
