Steering Wheel Multifunction Switch: Removal

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

1.

Remove the driver airbag. Refer to: Driver Airbag .

2.

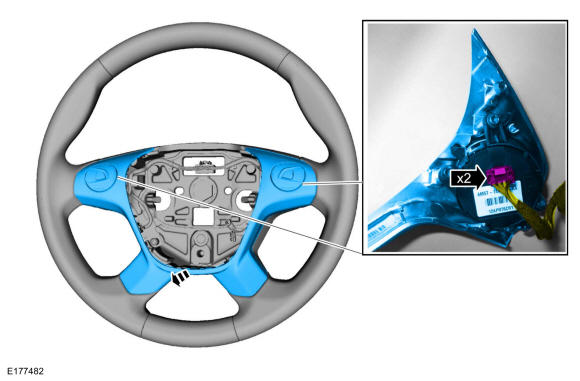

Using a suitable flat-bladed tool, remove the steering wheel switch bezel and disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

Upper steering wheel switches

3.

Remove the retainers and the steering wheel multifunction switch.

Courtesy of FORD MOTOR COMPANY

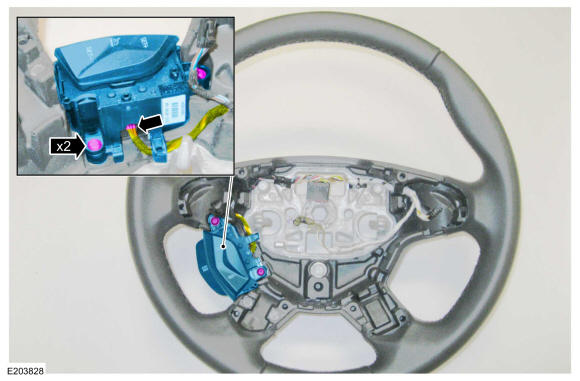

Lower steering wheel switches

4.

Disconnect the electrical connector, remove the retainers and the steering wheel multifunction switch.

Courtesy of FORD MOTOR COMPANY
