System Diagram

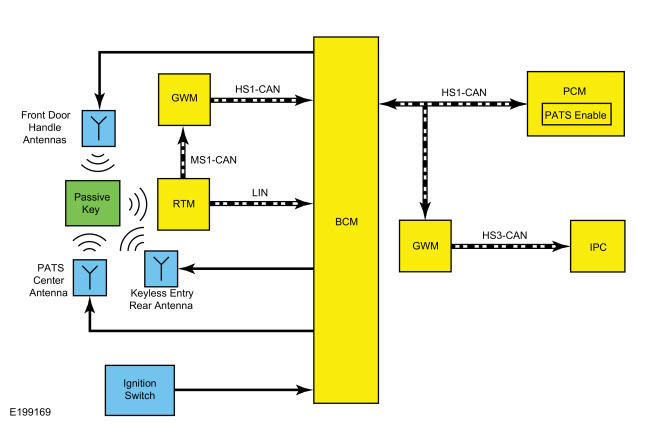

GFD282872Courtesy of FORD MOTOR COMPANY

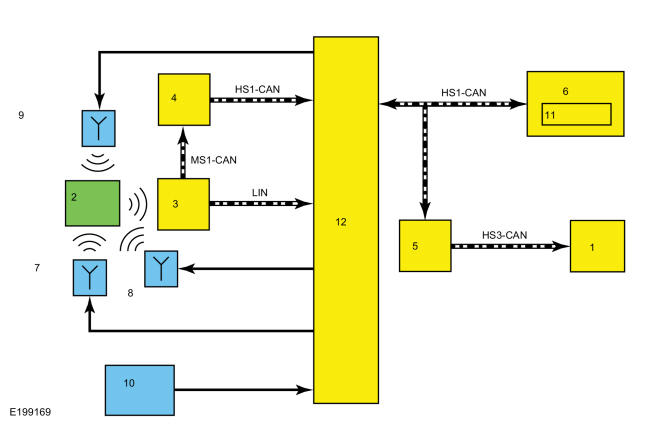

GFD282873Courtesy of FORD MOTOR COMPANY
Item Description
1 IPC
2 Passive Key
3 RTM
4 GWM
5 GWM
6 PCM
7 PATS Center Antenna
8 Keyless Entry Rear Antenna
9 Front Door Handle Antennas
10 Ignition Switch
11 PATS Enable
12 BCM
