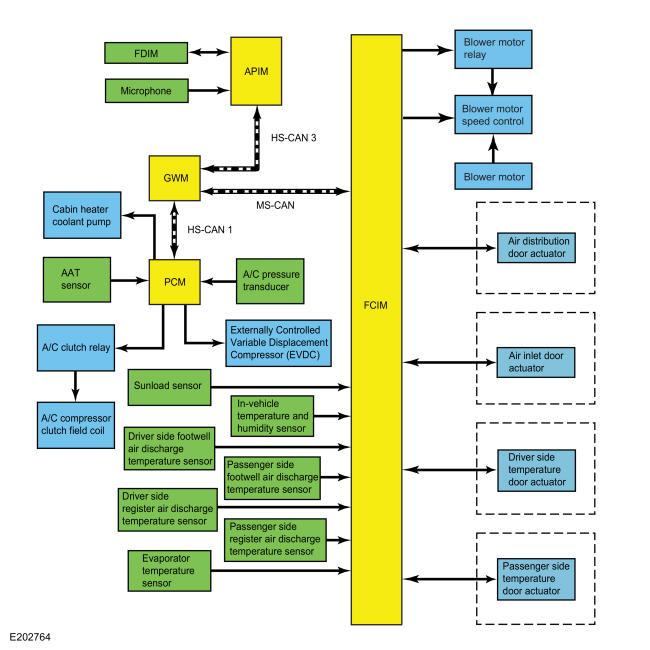

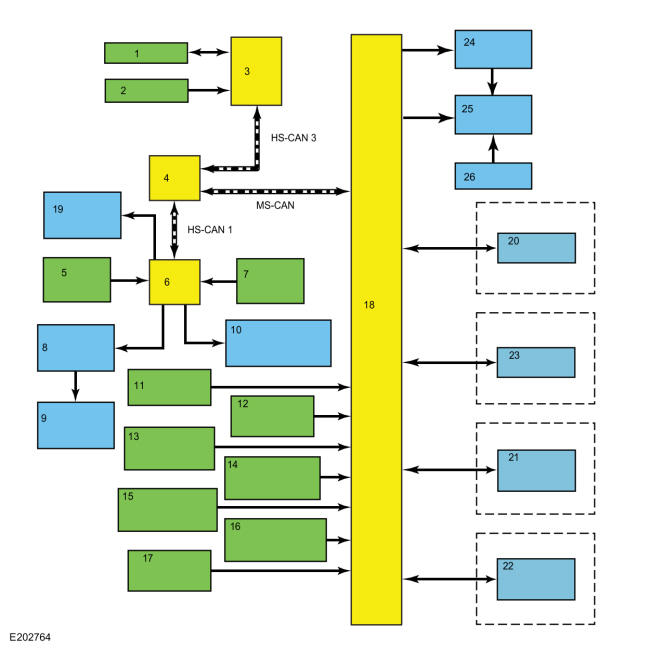

| 1 |
FDIM |
| 2 |
Microphone |
| 3 |
APIM |
| 4 |
GWM |
| 5 |
Ambient Air Temperature (AAT) sensor |
| 6 |
PCM |
| 7 |
A/C pressure transducer |
| 8 |
A/C clutch relay |
| 9 |
A/C compressor clutch field coil |
| 10 |
Externally Controlled Variable Displacement Compressor (EVDC) |
| 11 |
Sunload sensor |
| 12 |
In-vehicle temperature and humidity sensor |
| 13 |
Driver side footwell air discharge temperature sensor |
| 14 |
Passenger side footwell air discharge temperature sensor |
| 15 |
Driver side register air discharge temperature sensor |
| 16 |
Passenger side register air discharge temperature sensor |
| 17 |
Evaporator temperature sensor |
| 18 |
FCIM |
| 19 |
Cabin heater coolant pump |
| 20 |
Air distribution door actuator |
| 21 |
Driver side temperature door actuator |
| 22 |
Passenger side temperature door actuator |
| 23 |
Air inlet door actuator |
| 24 |
Blower motor relay |
| 25 |
Blower motor speed control |
| 26 |
Blower motor |
