Refrigerator Switch: Notes

For information on Ford Color Coded Illustrations refer to OEM Color Coding

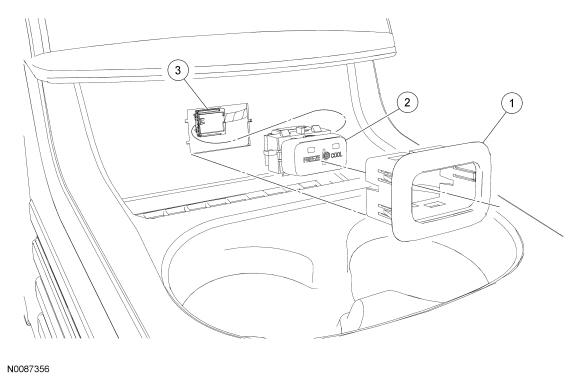

GFD323543Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 14D468 Refrigerator switch
2 061B38 Refrigerator switch bezel
3 -- Refrigerator switch electrical connector
