High-Pressure Fuel Pump Drive Unit: Removal
- Disconnect both battery cables. Refer to: Battery Disconnect and Connect .

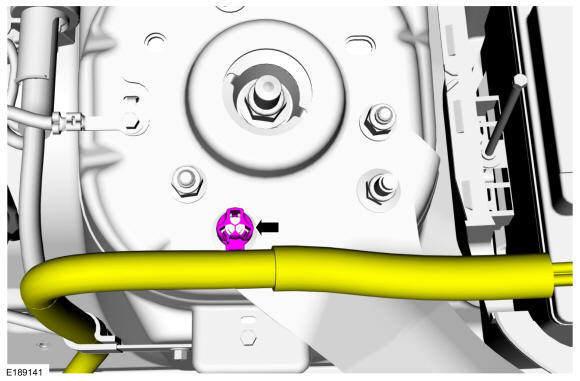

- Disconnect the battery cable retainer.
-

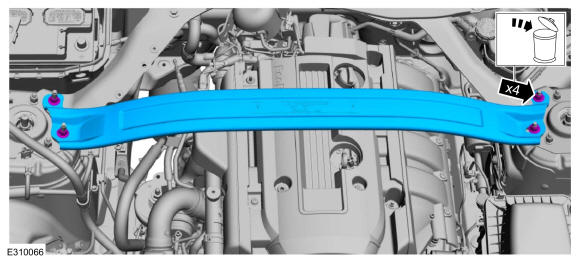

- If equipped, remove the nuts and the strut tower cross brace.
- Discard the nuts.
- Remove the cowl panel grille. Refer to: Cowl Panel Grille .

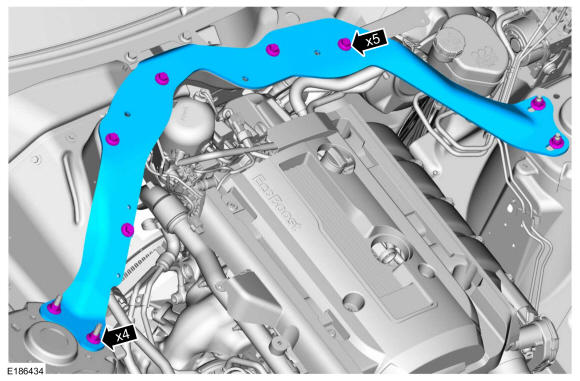

- Remove the strut tower cross brace bolts, remove the strut tower cross brace nuts and then remove the strut tower cross brace.

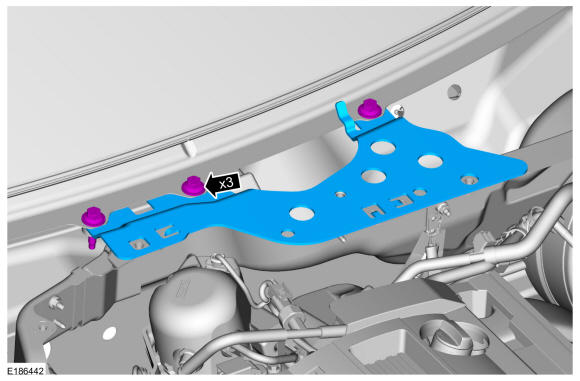

- Remove the cowl extension bolts and then remove the extension.
- Remove the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .

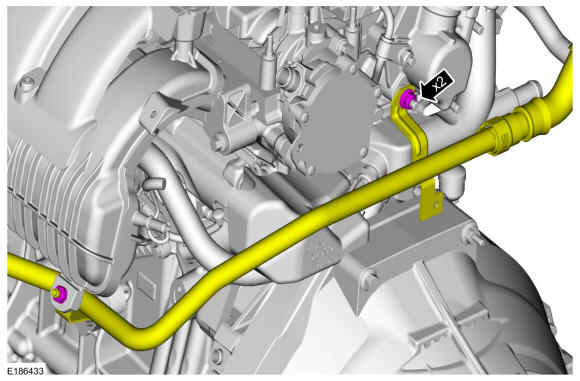

- Remove the bolts and position aside the coolant line.

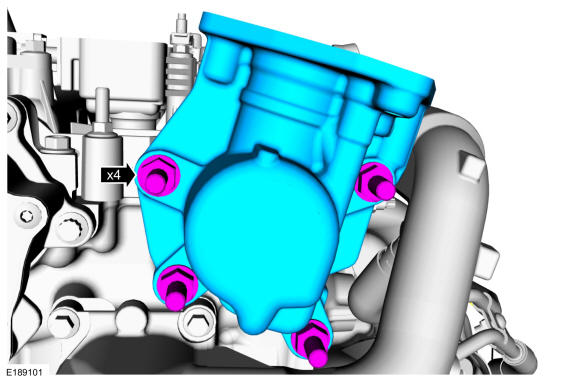

- Remove the high-pressure fuel pump drive unit bolts and then remove the high-pressure fuel pump drive unit.
