Fuel Pump Driver Module (FPDM): Removal
NOTE:
The FPDM assembly is located beneath the rear seat cushion on the LH side.
- Remove the rear seat cushion. Refer to: Rear Seat Cushion .

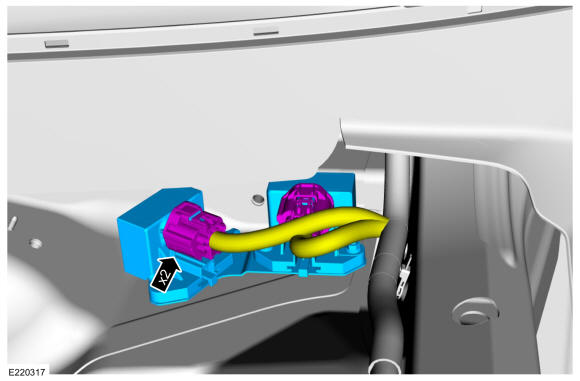

- Disconnect the FPDM electrical connectors.

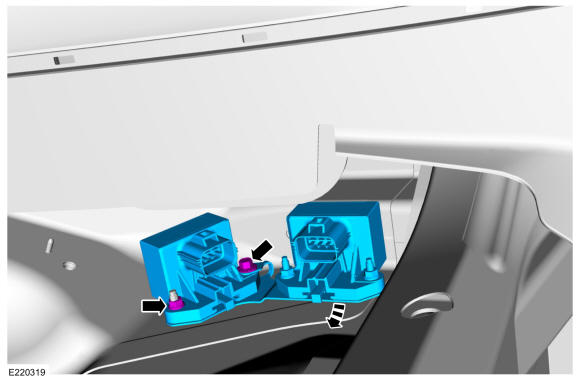

- Remove the FPDM retainers, swing the FPDM assembly out from under the trim panel and then remove the FPDM assembly.

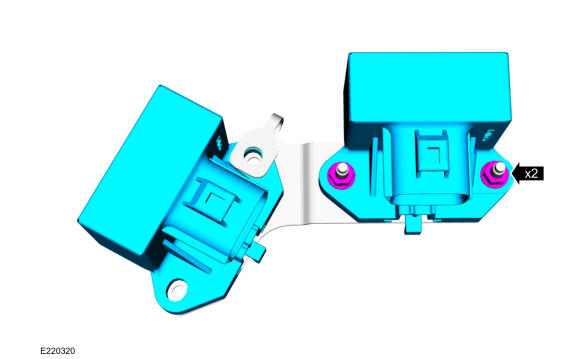

- Remove the FPDM retainers and then remove the 2 FPDMs from the FPDM bracket.
