Fuel Charging and Controls - Component Location

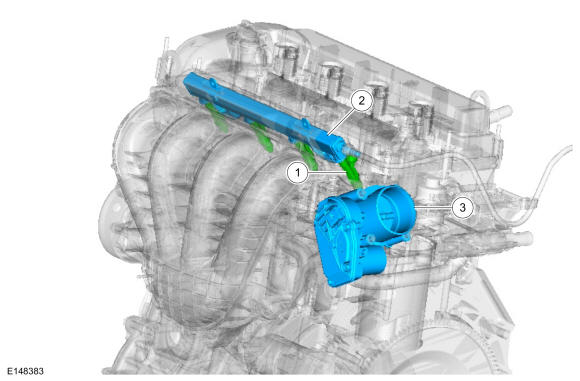

Component Location - Fuel Charging and Controls

GFD304430Courtesy of FORD MOTOR COMPANY
Item Description
1 Fuel injector
2 Fuel rail
3 Throttle Body (TB)

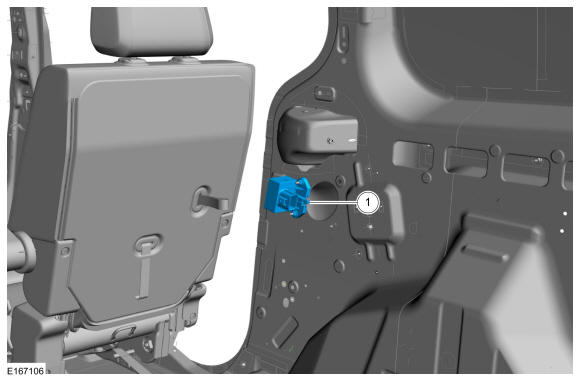

Component Location - FPDM

GFD304431Courtesy of FORD MOTOR COMPANY
Item Description
1 FPDM
