Explorer Platinum
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Charging Systems
>>
Charging System - General Information (1 Of 2)
>>
Description And Operation
>>
Charging System - System Operation and Component Description
>>

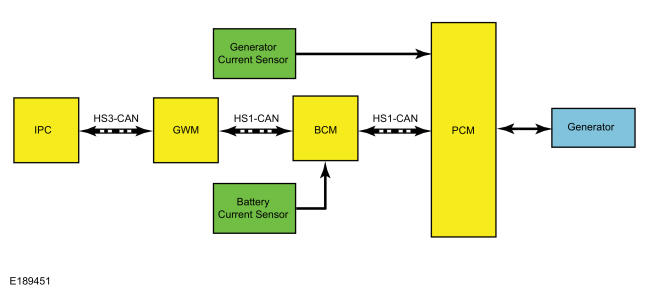

System Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
System Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
