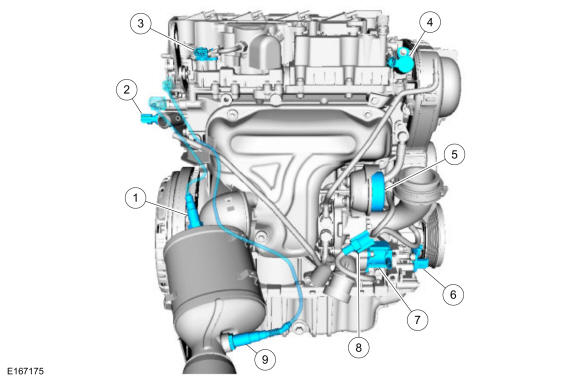

Electronic Engine Controls - RH Side of Engine
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
HO2S |
| 2 |
ECT sensor |
| 3 |
CMP sensor - RH |
| 4 |
VCT oil control solenoid |
| 5 |
Wastegate actuator |
| 6 |
CKP sensor |
| 7 |
Electrically controlled turbocharger bypass valve |
| 8 |
Turbocharger bypass valve solenoid |
| 9 |
Catalyst monitor sensor |
