Digital Transmission Range (TR) Sensor: Installation

    1. Install the TR sensor and park pawl actuating rod in the transmission case.
    2. Install the manual shaft in the transmission case through the TR sensor.

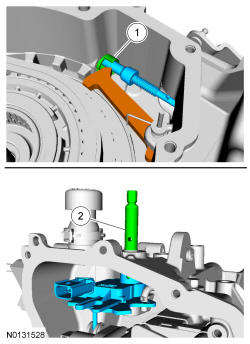

    GFD341166Courtesy of FORD MOTOR COMPANY
  2. NOTE: Be sure that the TR sensor manual pin is correctly installed in the manual valve.

    Visual check.

    GFD341167Courtesy of FORD MOTOR COMPANY
  3. Pin punch. New TR sensor locking pin.
    GFD341168Courtesy of FORD MOTOR COMPANY
  4. Alignment tab in the alignment hole. Visual check.

    • Tighten to 13 Nm (115 lb-in).

    GFD341169Courtesy of FORD MOTOR COMPANY
  5. GFD341162Courtesy of FORD MOTOR COMPANY
  6. Install the main control cover. Refer to Main Control Cover .
  7. NOTE: Make sure that when installing the manual control lever it is fully seated onto the manual control lever shaft or damage to the manual control lever shaft will occur and the lever will come loose.
    NOTE: Make sure to hold the manual control lever while tightening the manual control lever nut or damage to the manual control lever and park components will occur.

    • Tighten to 24 Nm (18 lb-ft).

    GFD341161Courtesy of FORD MOTOR COMPANY
  8. Connect the selector lever cable end to the manual control lever with the manual control lever and selector lever in DRIVE. Check selector lever cable adjustment. Refer to Automatic Transaxle Transmission External Controls .
GFD341160Courtesy of FORD MOTOR COMPANY
