Axle Assembly: Installation

WARNING: This page is about a different variant/trim than selected.

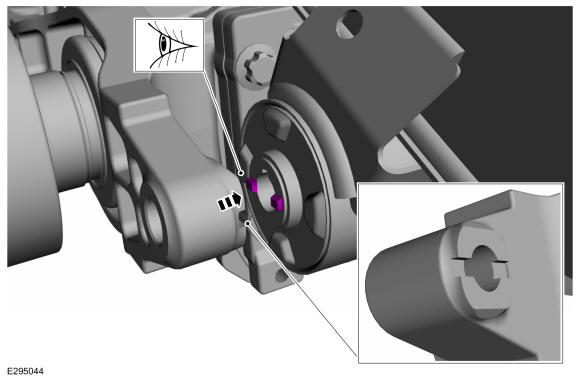

NOTE: Ensure that the subframe bushing anti-rotation tabs are engaged inside the slots on the RDU mounting bracket.

Check the position of the RDU and subframe bushing anti-rotation tabs as shown.

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
Check the differential fluid level. Refer to: Differential Fluid Level Check .
NOTE: If replacing the axle assembly, the AWD control module will need to be reconfigured with the new RDU bar code information. If the new bar code information does not match the existing AWD control module information, driveline damage or driveability concerns can occur.

NOTE: Using the diagnostic scan tool, carry out the rear drive unit calibration routine.

NOTE: The 16/17 -digit alpha numeric bar code is located on the label attached to the RDU. Using the scan tool, configure RDU bar code to AWD module through the OBD port.
