Fuel Pump Driver Module (FPDM): Installation

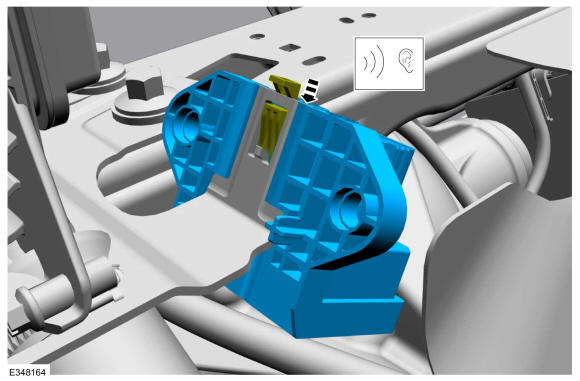

  1. Install the fuel pump driver module to the bracket until it clicks and locks into position.
    GFD625335Courtesy of FORD MOTOR COMPANY

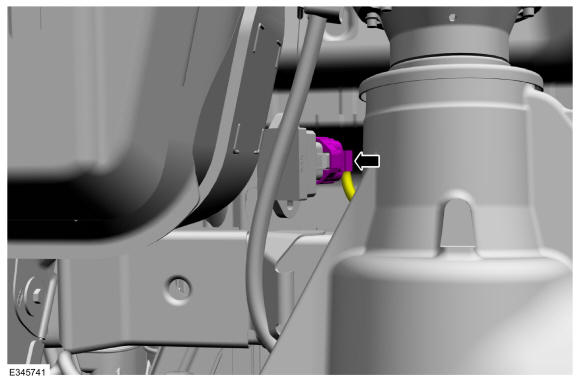

  2. Connect the fuel pump driver module electrical connector.
GFD625333Courtesy of FORD MOTOR COMPANY
