Rain Sensor: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

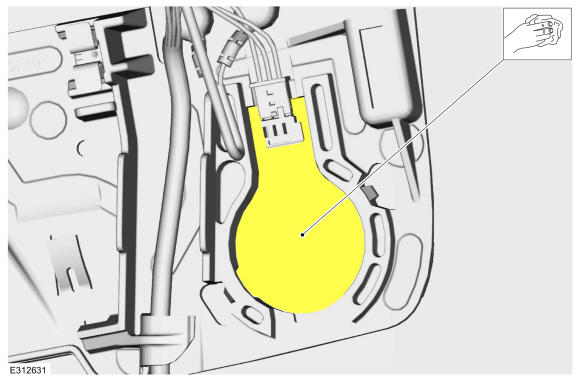

  1. Clean the windshield glass area of foreign materials.
    GFD562187Courtesy of FORD MOTOR COMPANY

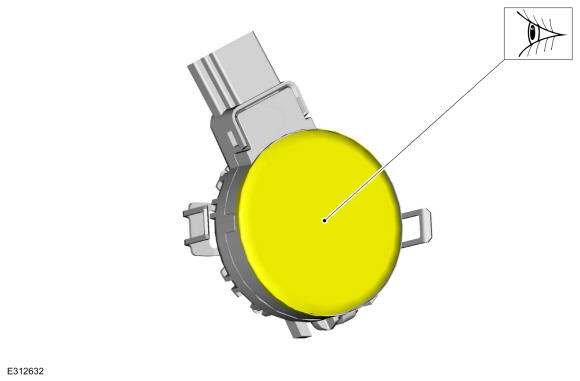

  2. NOTE: If the rain sensor gel pack is damaged, install a new rain sensor.

    Inspect the rain sensor gel pack for damage.

    GFD562188Courtesy of FORD MOTOR COMPANY

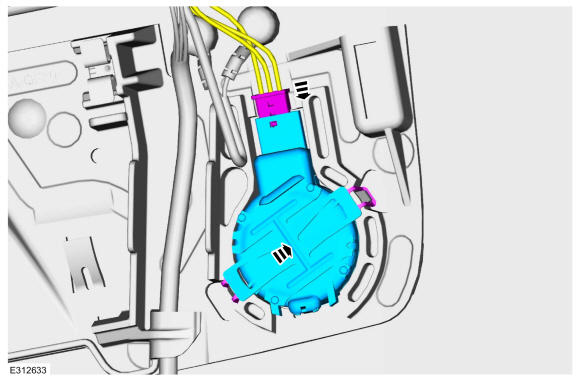

  3. Install the rain sensor and connect the electrical connector.
    GFD562189Courtesy of FORD MOTOR COMPANY
  4. Install the interior rear view mirror. Refer to: Interior Rear View Mirror .
