Fuel Pump Driver Module (FPDM): Installation

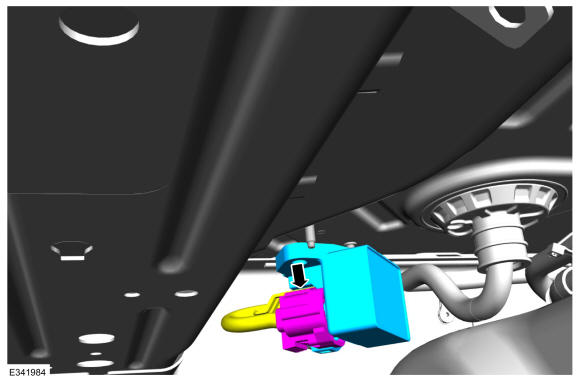

- Connect the fuel pump driver module electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

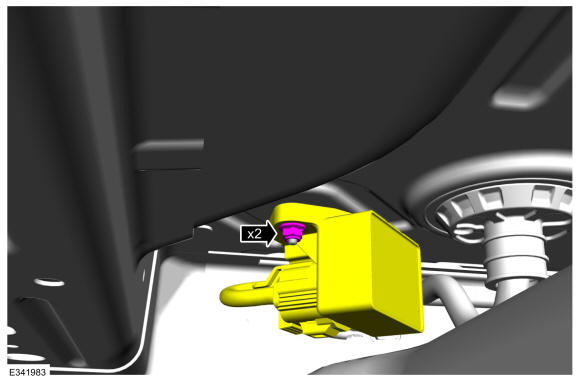

- Install the fuel pump driver module, then install and tighten the fuel pump driver module nuts.
Torque
: 36 lb.in (4.1 Nm)
 Courtesy of FORD MOTOR COMPANY
|

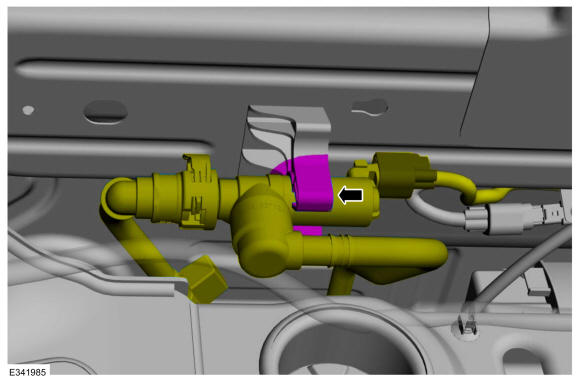

- Position back the EVAP blocking valve and hoses.
 Courtesy of FORD MOTOR COMPANY
|
