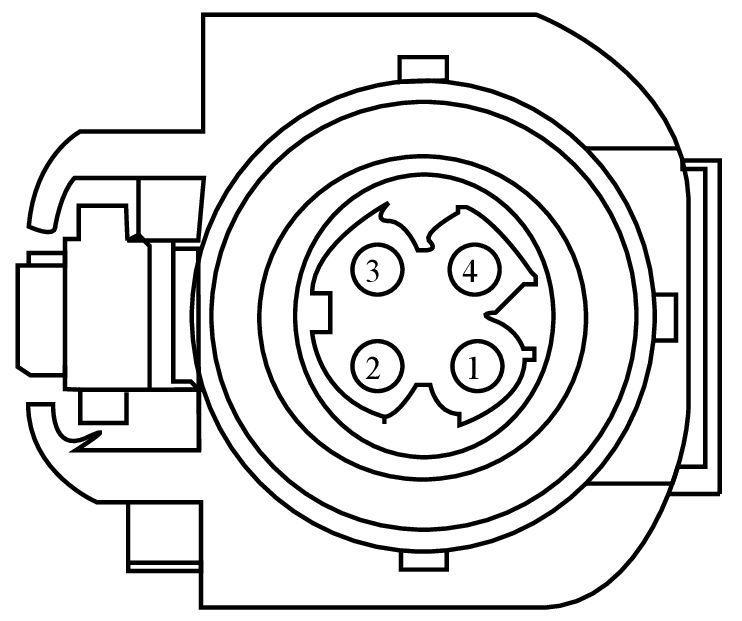

Connector End View C2253 - Front Display Interface Module (FDIM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2253	FRONT DISPLAY INTERFACE MODULE (FDIM)		PIA	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (*)	*	GROUNDS		N/A
2	* (*)	*	COMMUNICATION -		N/A
3	* (*)	*	POWER		N/A
4	* (*)	*	COMMUNICATION +		N/A
