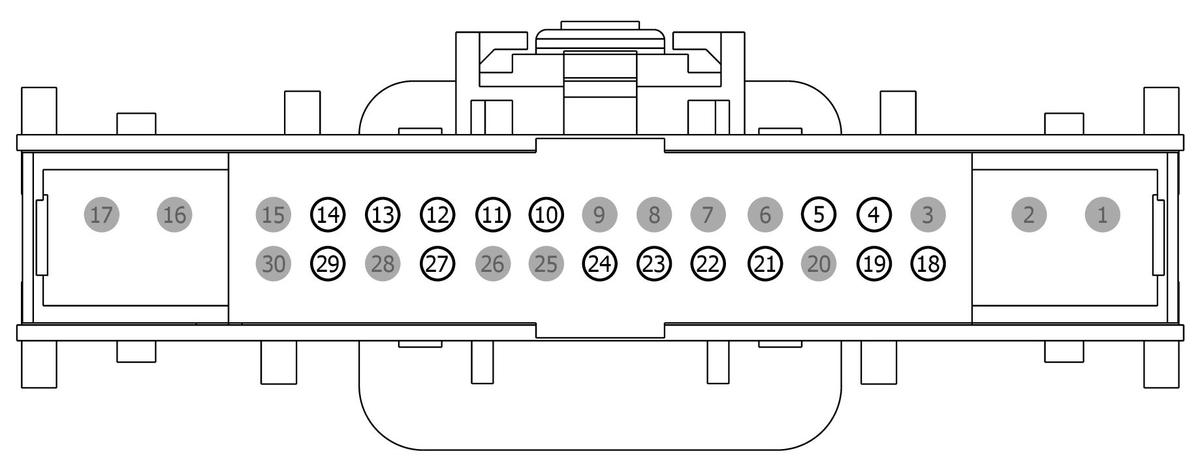

Connector End View C2402B - Front Controls Interface Module (FCIM)

Connector: Description Color Harness Base Part # Service Pigtail
C2402B FRONT CONTROLS INTERFACE MODULE (FCIM)   14401/14B079 part# N/A Not Available
GFDWR134447Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-DB DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used   N/A
2 * * Not Used   N/A
3 * * Not Used   N/A
4 VH409 (WH) 20 SENSOR - DISCHARGE TEMP. # LEFT (LEFT FRONT PANEL)   9U5T-14474-DB
4 VH409 (WH) 22 SENSOR - DISCHARGE TEMP. # LEFT (LEFT FRONT PANEL)   9U5T-14474-DB
5 VH410 (GY-BU) 22 SENSOR - DISCHARGE TEMP. # LEFT 2ND (LEFT FRONT FLOOR)   9U5T-14474-DB
6 * * Not Used   N/A
7 * * Not Used   N/A
8 * * Not Used   N/A
9 * * Not Used   N/A
10 VH411 (VT-GN) 22 SENSOR - DISCHARGE TEMP. # RIGHT (RIGHT FRONT PANEL)   9U5T-14474-DB
10 VH411 (VT-GN) 20 SENSOR - DISCHARGE TEMP. # RIGHT (RIGHT FRONT PANEL)   9U5T-14474-DB
11 VH412 (YE-GY) 22 SENSOR - DISCHARGE TEMP. # RIGHT 2ND (RIGHT FRONT FLOOR)   9U5T-14474-DB
12 CRD01 (VT-OG) 22 CTRL MOD. - RELAY HEATER FRONT WINDOW   9U5T-14474-DB
12 CRD01 (VT-OG) 20 CTRL MOD. - RELAY HEATER FRONT WINDOW   9U5T-14474-DB
13 CH212 (BU-OG) 22 CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 1 / CLOSE (IF PLUS)   9U5T-14474-DB
14 CH213 (BN-GN) 22 CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2 / OPEN (IF PLUS)   9U5T-14474-DB
15 * * Not Used   N/A
16 * * Not Used   N/A
17 * * Not Used   N/A
18 VH441 (WH-BN) 22 SENSOR - DOOR POSITION TEMP. RIGHT   9U5T-14474-DB
19 VH413 (WH-BU) 22 SENSOR - HUMIDITY   9U5T-14474-DB
20 * * Not Used   N/A
21 VH416 (VT-GY) 22 SENSOR - SUN LOAD # LEFT   9U5T-14474-DB
22 VH417 (YE-OG) 22 SENSOR - SUN LOAD # RIGHT   9U5T-14474-DB
23 CH253 (WH-BN) 22 CTRL MOD. - CLIMATE # START/STOP SWITCH DISABLE   9U5T-14474-DB
24 CE469 (BN) 22 CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR   9U5T-14474-DB
25 * * Not Used   N/A
26 * * Not Used   N/A
27 RH103 (GY) 22 CTRL MOD. - CLIMATE # I. T. S. ASPIRATOR MOTOR -   9U5T-14474-DB
28 * * Not Used   N/A
29 VH414 (GN-BU) 22 SENSOR - INCAR TEMP.   9U5T-14474-DB
30 * * Not Used   N/A
