Piston Selection

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Check

1. Refer to specifications for piston selection. Refer to: Specifications .
2. NOTE: The cylinder bore must be within the specifications for taper and out-of-round before fitting a piston.

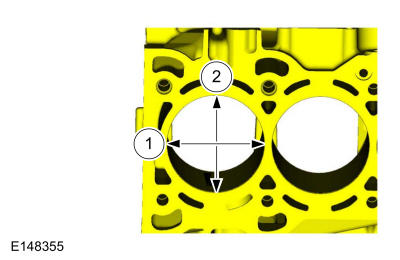

   • Measure the cylinder bore in 2 directions.
   • Select a piston size based on the cylinder bore.

Courtesy of FORD MOTOR COMPANY
