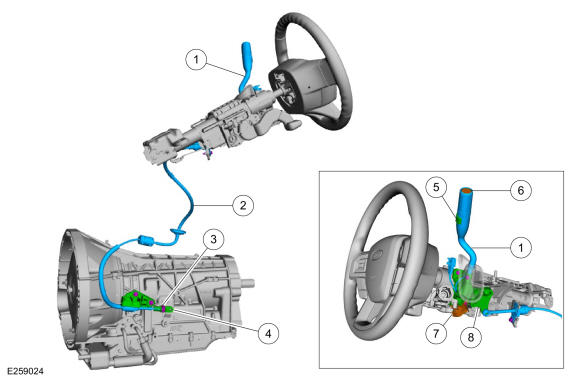

External Controls - Vehicles With: Column Shift - Component Location
| Item | Description |
|---|---|
| 1 | Selector lever |
| 2 | Selector lever cable |
| 3 | Selector lever cable adjuster lock |
| 4 | Selector lever cable adjuster |
| 5 | SelectShift™ switch |
| 6 | Transmission control switch |
| 7 | Brake shift interlock actuator |
| 8 | Selector lever mechanism |

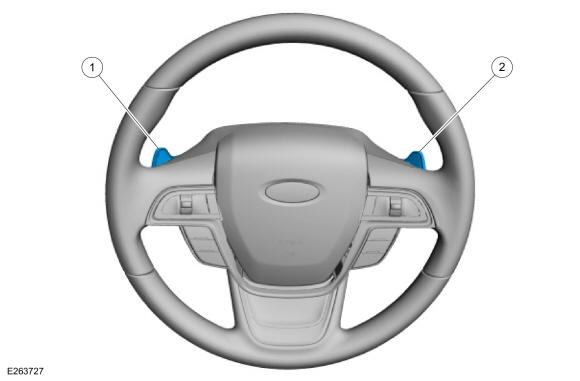

| Item | Description |
|---|---|
| 1 | Downshift paddle switch (used for Progressive Gear Selection only, Refer to: Transmission Description - System Operation and Component Description . |
| 2 | Upshift paddle switch (used for Progressive Gear Selection only, Refer to: Transmission Description - System Operation and Component Description . |
