Third Row Seatbelt Buckle: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH (left-hand) shown, RH (right-hand) similar.

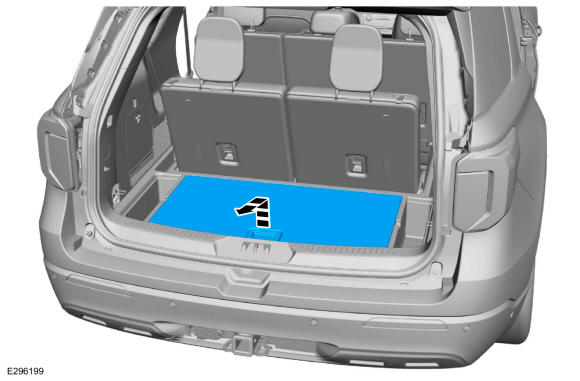

Remove the luggage compartment floor cover.

Courtesy of FORD MOTOR COMPANY

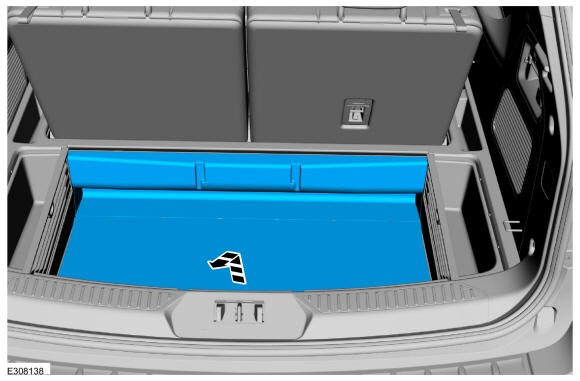

Remove the luggage compartment storage bin.

Courtesy of FORD MOTOR COMPANY

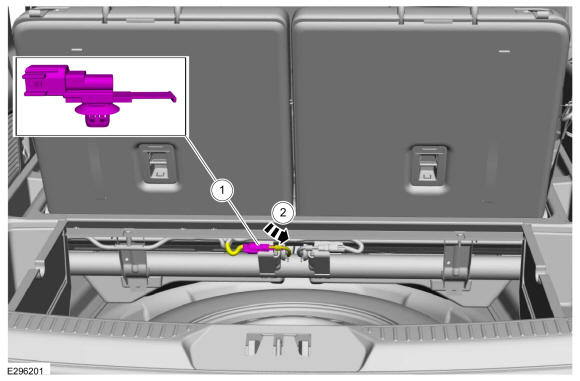

1. Detach and disconnect the third row seatbelt buckle electrical connector.
2. Route the wiring harness through the seat frame.
Courtesy of FORD MOTOR COMPANY

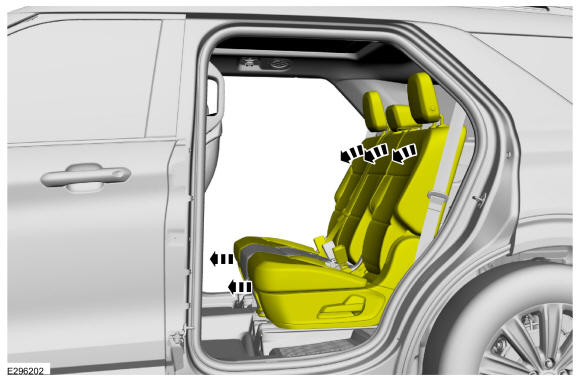

Fold the second row seats and position the outer seats forward.

Courtesy of FORD MOTOR COMPANY

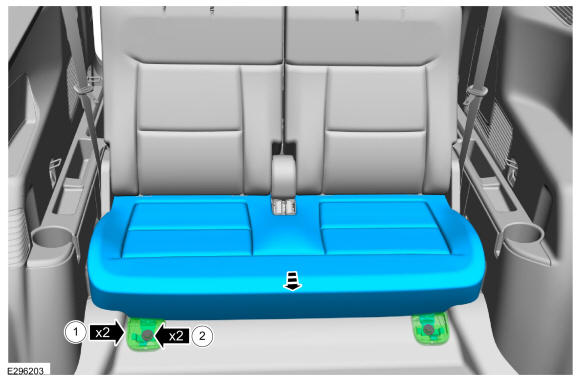

Remove the third row seat cushion.
1. Remove the bolt covers.
2. Remove the bolts.
  Torque: 35 lb.ft (47 Nm)
Courtesy of FORD MOTOR COMPANY

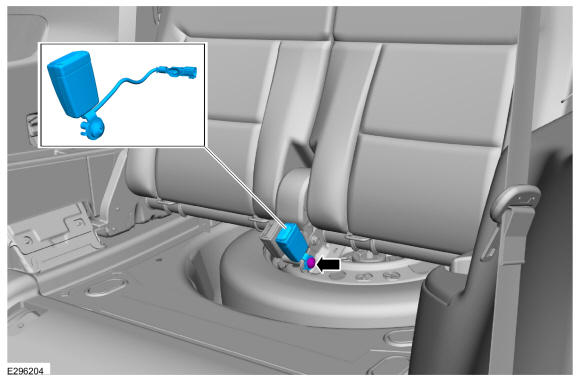

Remove the bolt and the third row seatbelt buckle.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
