Driver Door Window Control Switch: Removal

  1. Remove the lower front door trim panel. Refer to: Front Door Trim Panel .

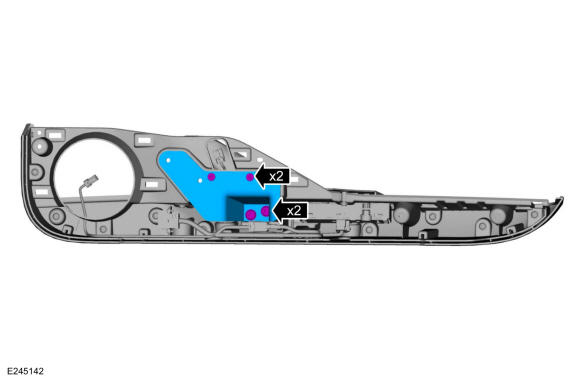

  2. Remove the bolts and lower front door trim panel bracket.

    Torque: 62 lb.in (7 Nm)

    GFD346084Courtesy of FORD MOTOR COMPANY

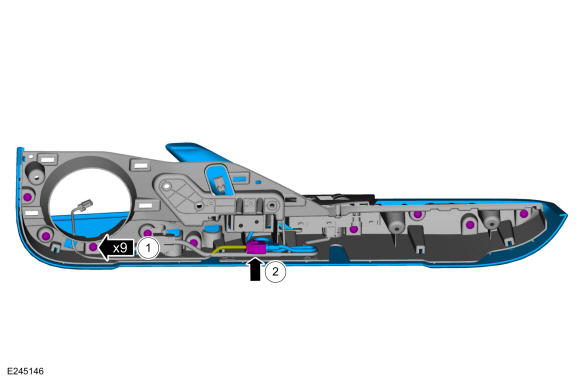

  3. Remove the lower front door trim panel from the trim panel reinforcement.

    1. Remove the screws from the lower front door trim panel to the trim panel reinforcement.
    2. Disconnect the interior front door release switch electrical connector and remove the lower front door trim panel from the trim panel reinforcement.

    GFD345982Courtesy of FORD MOTOR COMPANY

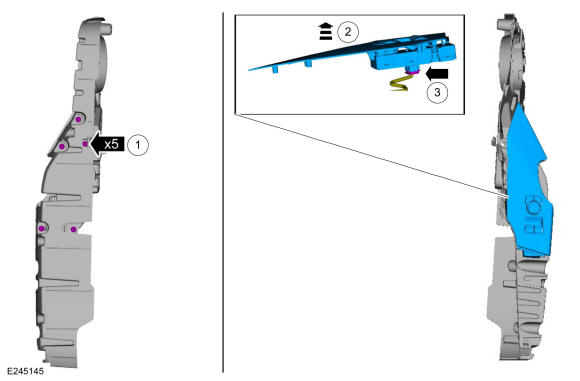

  4. Remove the driver door window control switch bezel assembly.

    1. Remove the screws from the driver door window control switch bezel assembly.
    2. Remove the driver door window control switch bezel assembly from the trim panel reinforcement.
    3. Disconnect the driver door window control switch electrical connector.

    GFD346085Courtesy of FORD MOTOR COMPANY
  5. Remove the screws and the driver door window control switch.
GFD346086Courtesy of FORD MOTOR COMPANY
