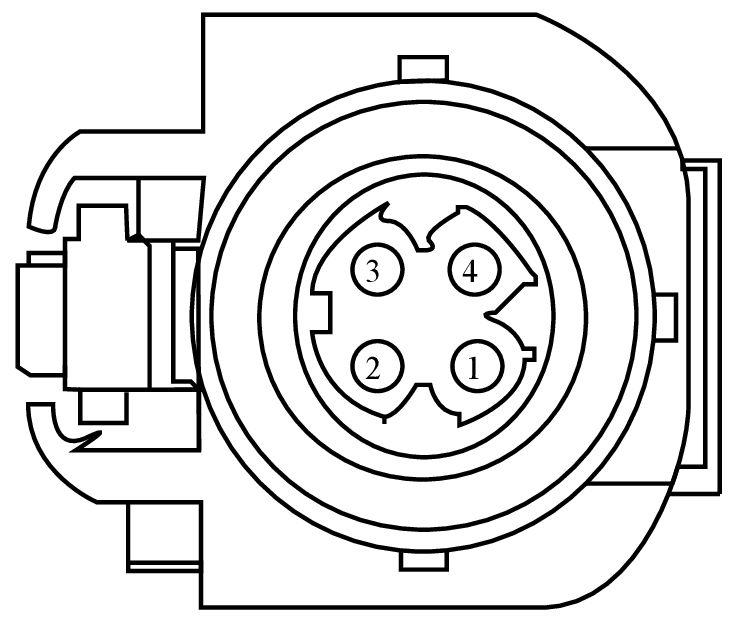

Connector End View C2253 - Front Display Interface Module (FDIM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2253	FRONT DISPLAY INTERFACE MODULE (FDIM)	YE	10E929	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (*)	*	DISPLAY GROUND	N/A
2	* (*)	*	TPA -	N/A
3	* (*)	*	DISPLAY POWER	N/A
4	* (*)	*	TPA +	N/A
