Battery Charging
WARNING: This page is about a different car, the 2022 Ford Transit-350 HD, 2022 Ford Transit-350, 2022 Ford Transit-250, 2022 Ford Transit-150, and 2022 Ford E-Transit. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| 162-00036GR-1-190 Diagnostic Charger | |
|---|---|
Charging
NOTE:
Batteries will discharge due to normal parasitic key off-loads when the vehicle is on a dealer lot or parked by the customer for an extended period of time. Vehicles still in dealer inventory or in long-term storage may be driven short distances with heavy electrical loads. Over a period of time (30 days or more), this could result in vehicles having shallow or deeply discharged batteries.
NOTE:
The vehicle charging system is designed to supply the electrical power needed to maintain the battery near full charge during normal vehicle use. The charging system is not capable of bringing a deeply discharged battery back to near full charge in a short amount of time such as allowing the vehicle to idle for 15 minutes to recharge the battery. Use an external charger to charge discharged batteries.
NOTE:
Cold batteries will not readily accept a charge. Allow batteries to warm to approximately 5°C (41°F) before charging. This may require 4 to 8 hours at room temperature.
Charger Connected to Engine or Chassis Ground - Preferred Method

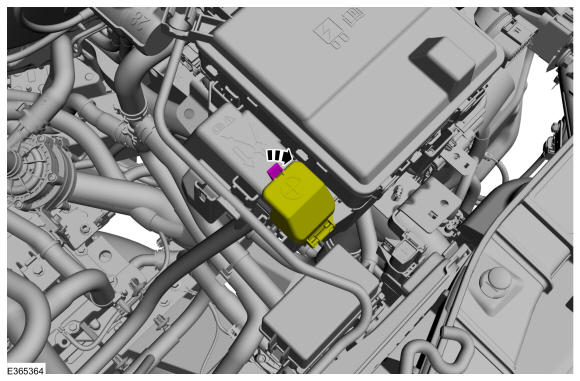

- Position aside the positive battery cable terminal cover.

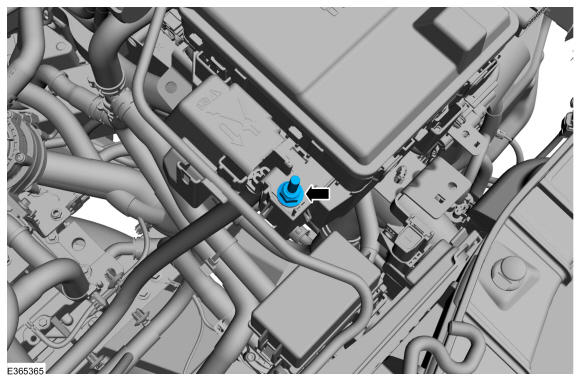

- Connect the positive (red) charger clamp to the AJB positive battery cable terminal. Use Special Service Tool: 162-00036 GR-1-190 Diagnostic Charger.
-
NOTE: Do not connect the negative (black) charger clamp directly to the battery monitoring sensor, it must be connected to an engine or chassis ground to relearn the battery's state of charge.
Connect the negative (black) charger clamp to an engine or chassis ground.
- Charge the battery following the battery charger manufacturer's instructions.
Charger Connected to Battery Posts
NOTE: If equipped, the battery monitoring sensor must relearn the battery's state of charge after charging, refer to Battery State of Charge . - Disconnect the battery/batteries. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
- Connect the positive (red) charger clamp to the positive battery post. Use Special Service Tool: 162-00036 GR-1-190 Diagnostic Charger.
- Connect the negative (black) charger clamp to the negative battery post.
- Charge the battery following the battery charger manufacturer's instructions.
