Auto-Start-Stop System
WARNING:
This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

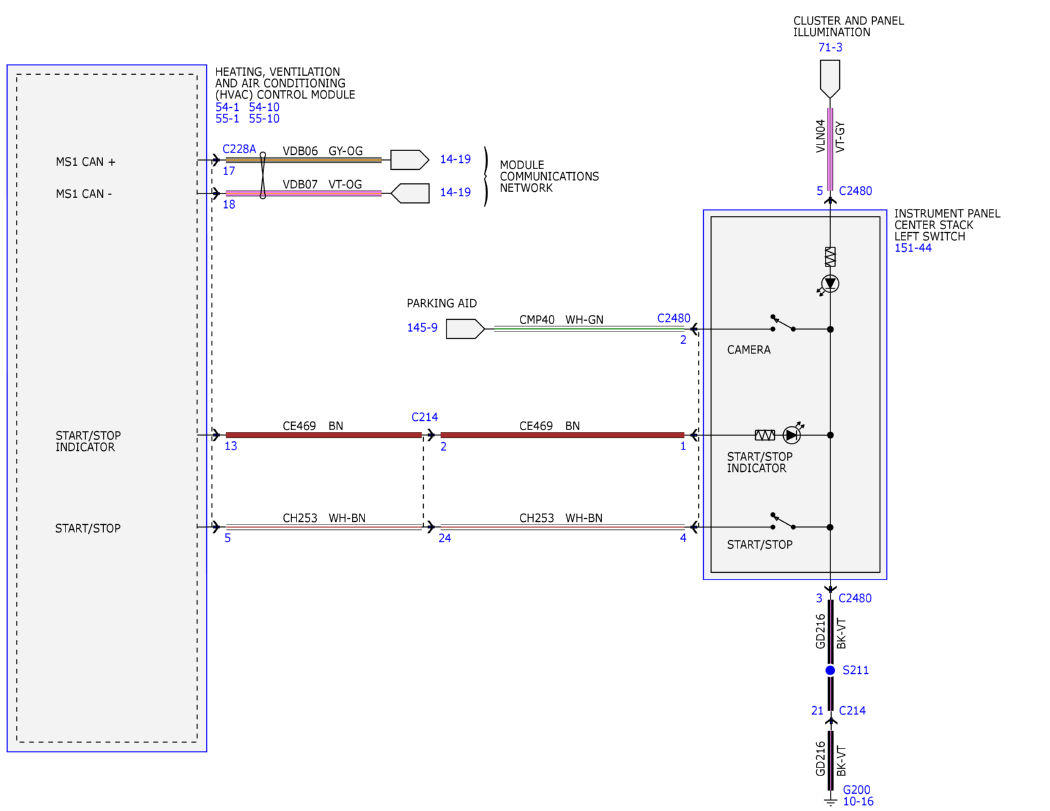

Fig 1: Auto-Start-Stop System Wiring Diagram
Courtesy of FORD MOTOR COMPANY
