Steering Gear: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- If installing a new steering gear, upload the PSCM configuration to the scan tool. Refer to: Module Configuration - System Operation and Component Description .
- Remove the front subframe. Refer to: Front Subframe .
-

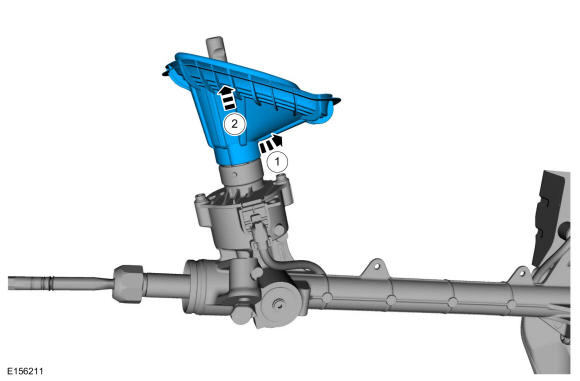

- Rotate the steering gear boot counter clockwise.
- Remove the steering gear boot.

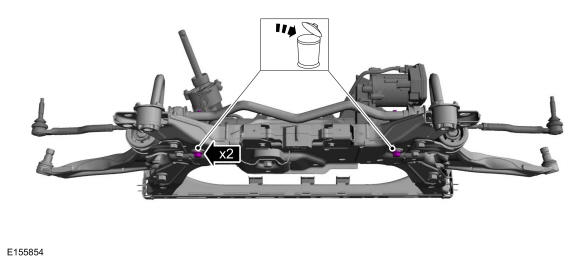

- Remove and discard the steering gear mounting bolts.
Torque: 129 lb.ft (175 Nm)

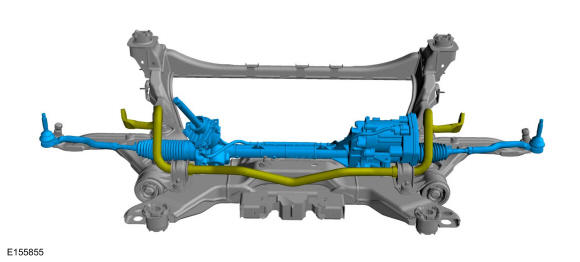

- Lift the front stabilizer bar up to gain clearance and remove the steering gear.
