Fuel Pump Driver Module (FPDM): Removal

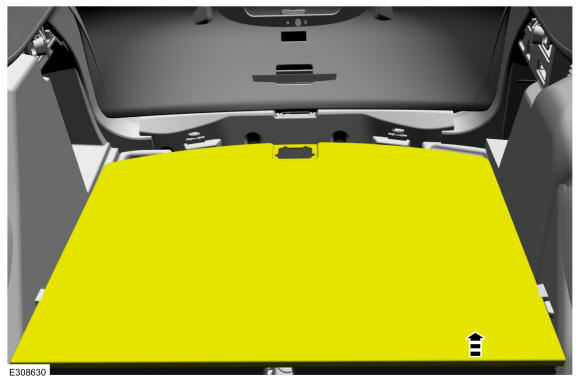

- Position the second row left seat back all the way forward, then raise front of the rear load floor up and out of the way.
 Courtesy of FORD MOTOR COMPANY
|

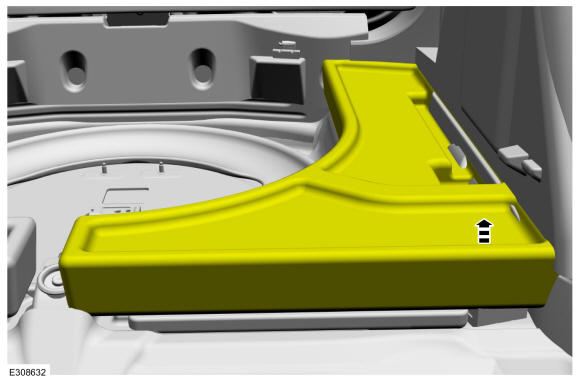

- Raise the left front corner of the left load compartment floor support up and out of the way.
 Courtesy of FORD MOTOR COMPANY
|
- Disconnect the fuel pump driver module electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- Remove the fuel pump driver module nuts, then remove the module.
 Courtesy of FORD MOTOR COMPANY
|
